Ever tried to create a family tree for your website, but didn’t exactly know how to approach it? Well, in today’s Divi tutorial, we’re going to show you exactly how to do that. On top of creating the family tree, we’re also making sure it remains responsive across all screen sizes. Once you’re done creating the family tree, you’ll always be able to modify the images, text and design according to your own preference and make it ready to go live! Want to get started with this family tree design right away? You’ll be able to download the JSON file for free and add it to any website you’re creating!

Let’s get to it.

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome across different screen sizes.

Desktop

family tree

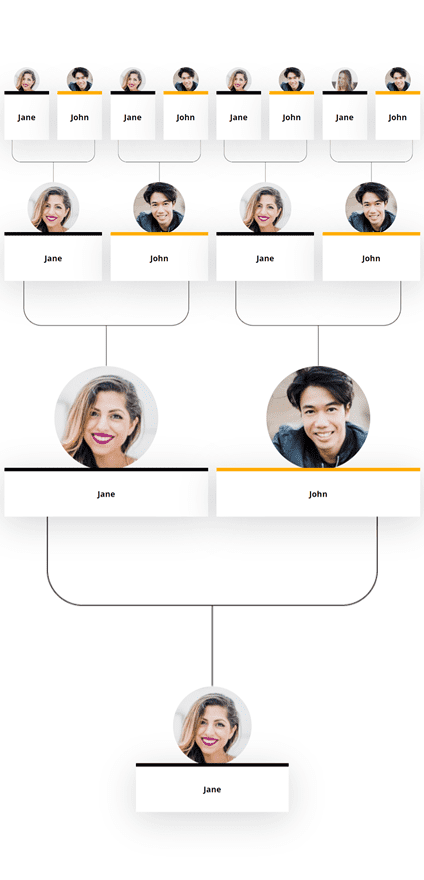

Mobile

family tree

Download the Family Tree Layout for FREE

To lay your hands on the free family tree layout, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our Divi Daily email list by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

.et_bloom .et_bloom_optin_1 .et_bloom_form_content { background-color: #4843d2 !important; } .et_bloom .et_bloom_optin_1 .et_bloom_form_container .et_bloom_form_header { background-color: #ffffff !important; } .et_bloom .et_bloom_optin_1 .carrot_edge .et_bloom_form_content:before { border-top-color: #ffffff !important; } .et_bloom .et_bloom_optin_1 .carrot_edge.et_bloom_form_right .et_bloom_form_content:before, .et_bloom .et_bloom_optin_1 .carrot_edge.et_bloom_form_left .et_bloom_form_content:before { border-top-color: transparent !important; border-left-color: #ffffff !important; }
@media only screen and ( max-width: 767px ) {.et_bloom .et_bloom_optin_1 .carrot_edge.et_bloom_form_right .et_bloom_form_content:before, .et_bloom .et_bloom_optin_1 .carrot_edge.et_bloom_form_left .et_bloom_form_content:before { border-top-color: #ffffff !important; border-left-color: transparent !important; }
}.et_bloom .et_bloom_optin_1 .et_bloom_form_content button { background-color: #f92c8b !important; } .et_bloom .et_bloom_optin_1 .et_bloom_form_content .et_bloom_fields i { color: #f92c8b !important; } .et_bloom .et_bloom_optin_1 .et_bloom_form_content .et_bloom_custom_field_radio i:before { background: #f92c8b !important; } .et_bloom .et_bloom_optin_1 .et_bloom_border_solid { border-color: #f7f9fb !important } .et_bloom .et_bloom_optin_1 .et_bloom_form_content button { background-color: #f92c8b !important; } .et_bloom .et_bloom_optin_1 .et_bloom_form_container h2, .et_bloom .et_bloom_optin_1 .et_bloom_form_container h2 span, .et_bloom .et_bloom_optin_1 .et_bloom_form_container h2 strong { font-family: “Open Sans”, Helvetica, Arial, Lucida, sans-serif; }.et_bloom .et_bloom_optin_1 .et_bloom_form_container p, .et_bloom .et_bloom_optin_1 .et_bloom_form_container p span, .et_bloom .et_bloom_optin_1 .et_bloom_form_container p strong, .et_bloom .et_bloom_optin_1 .et_bloom_form_container form input, .et_bloom .et_bloom_optin_1 .et_bloom_form_container form button span { font-family: “Open Sans”, Helvetica, Arial, Lucida, sans-serif; } p.et_bloom_popup_input { padding-bottom: 0 !important;}

Download For Free

Download For Free

Join the Divi Newlsetter and we will email you a copy of the ultimate Divi Landing Page Layout Pack, plus tons of other amazing and free Divi resources, tips and tricks. Follow along and you will be a Divi master in no time. If you are already subscribed simply type in your email address below and click download to access the layout pack.

You have successfully subscribed. Please check your email address to confirm your subscription and get access to free weekly Divi layout packs!

Positioning Family Members

Add New Section

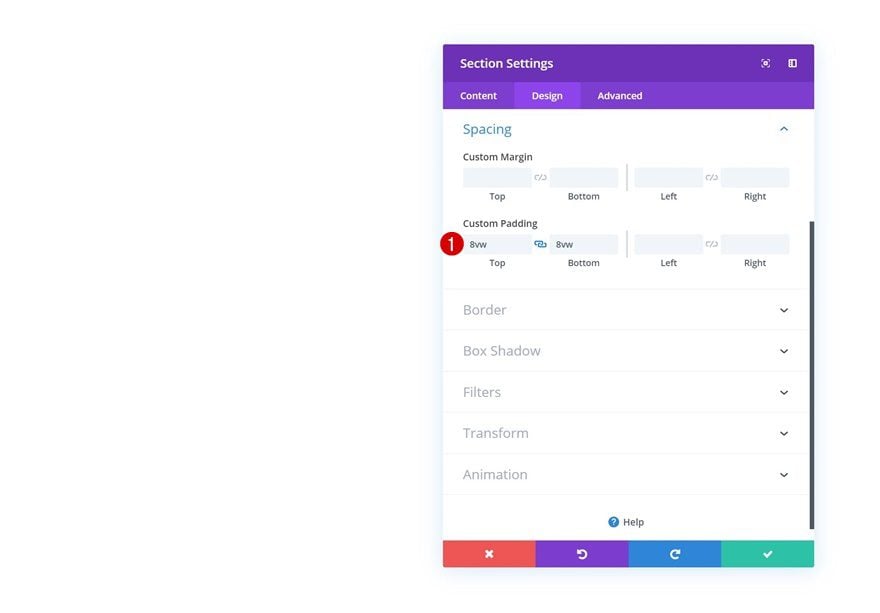

Spacing

Let’s start creating! The first thing we need to do is add a new regular section to the page we’re working on. Open the section settings and add some custom top and bottom padding using viewport width.

  • Top Padding: 8vw
  • Bottom Padding: 8vw

Add Row #1

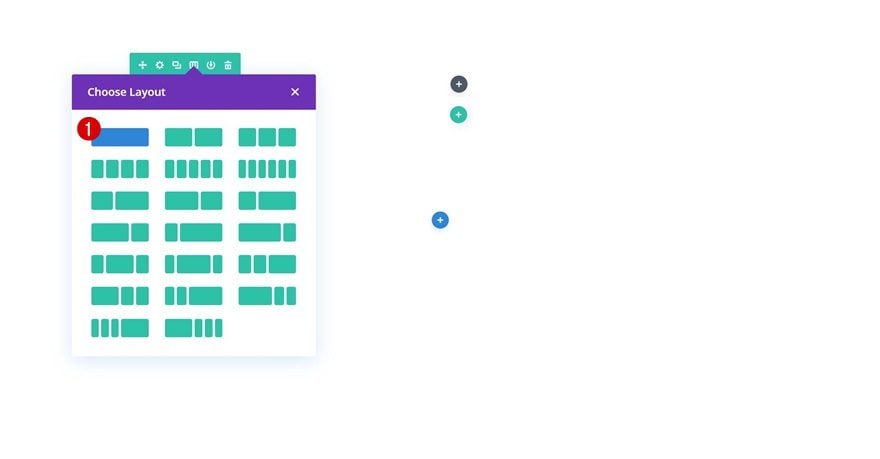

Column Structure

Continue by adding the first row to your section using the following column structure:

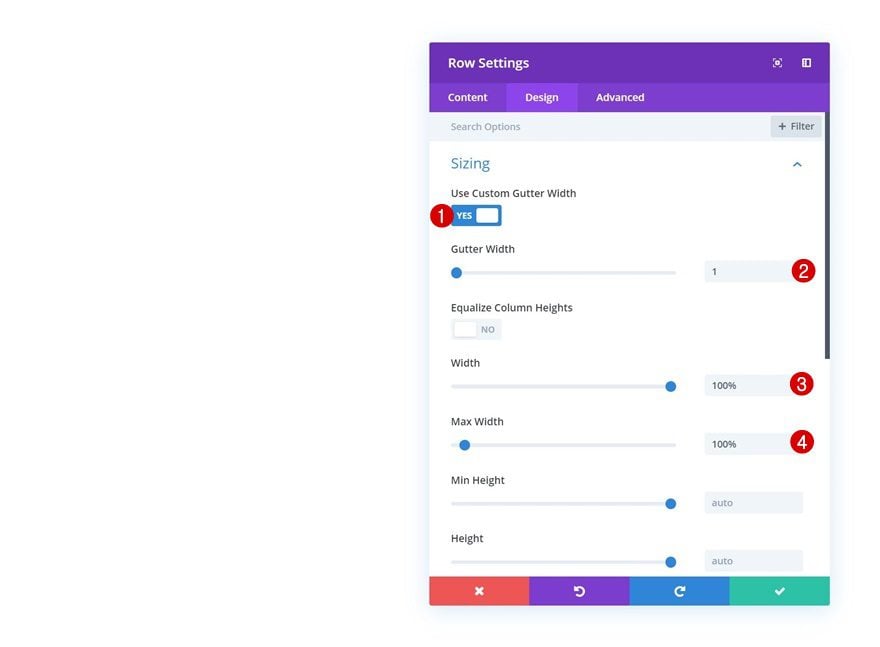

Sizing

Without adding any modules yet, open the row settings and allow the row to take up the entire width of the section and screen.

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Width: 100%
  • Max Width: 100%

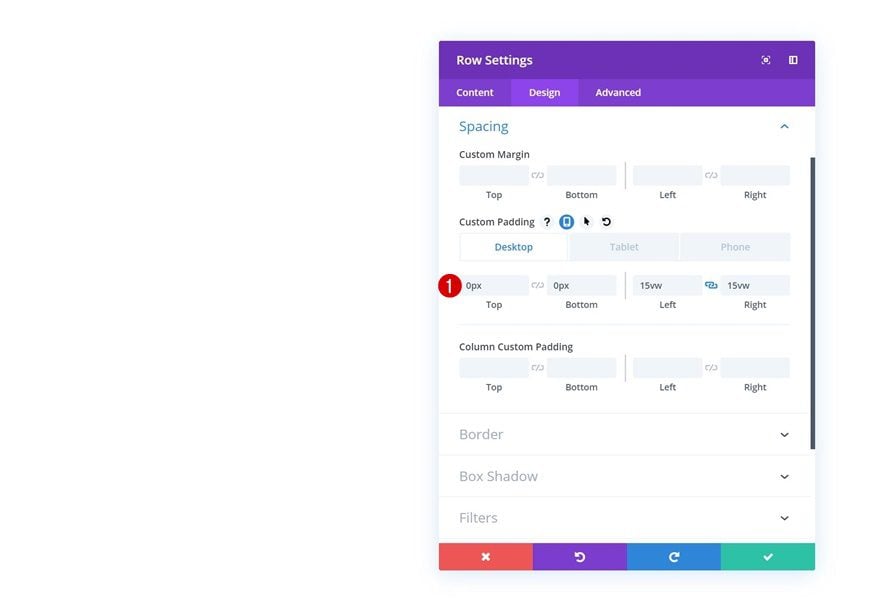

Spacing

To add whitespace to the left and the right side of the row on desktop, we’ll add some custom left and right padding using the viewport width unit.

  • Top Padding: 0px
  • Bottom Padding: 0px
  • Left Padding: 15vw (Desktop), 0vw (Tablet & Phone)
  • Right Padding: 15vw (Desktop), 0vw (Tablet & Phone)

Add Image Module to Column

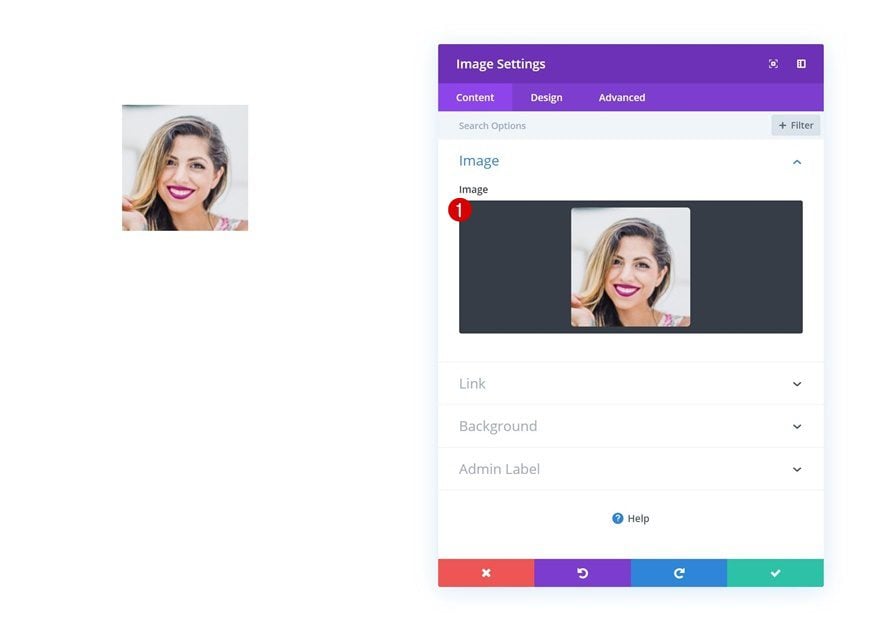

Upload Image

Time to start adding modules! The first one we need is an Image Module. Upload an image with a width and height of ‘180px’.

Alignment

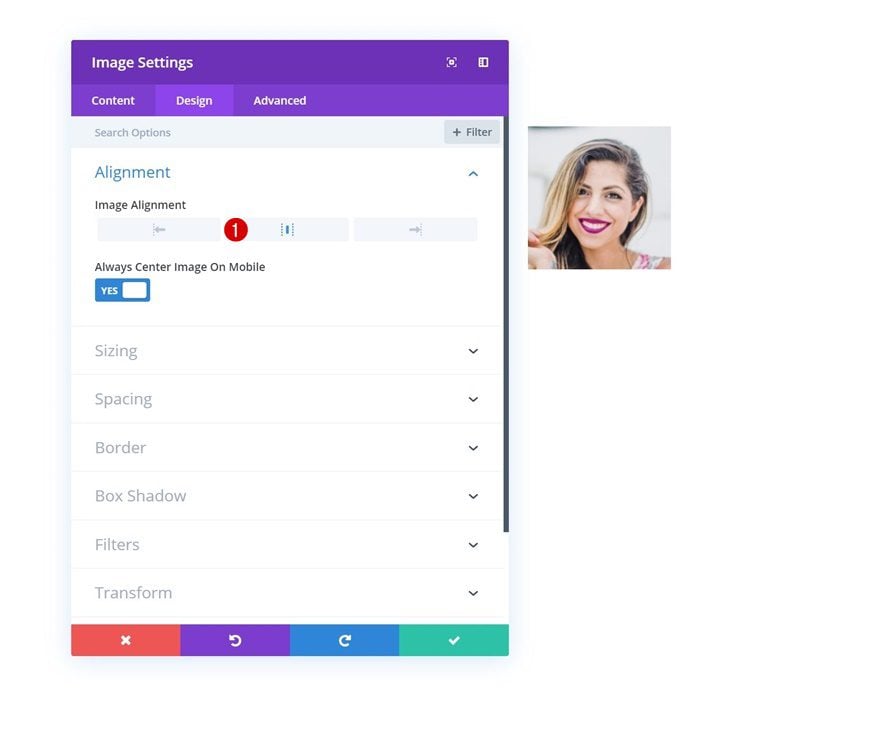

Then, go to the design tab and change the image alignment.

  • Image Alignment: Center

Sizing

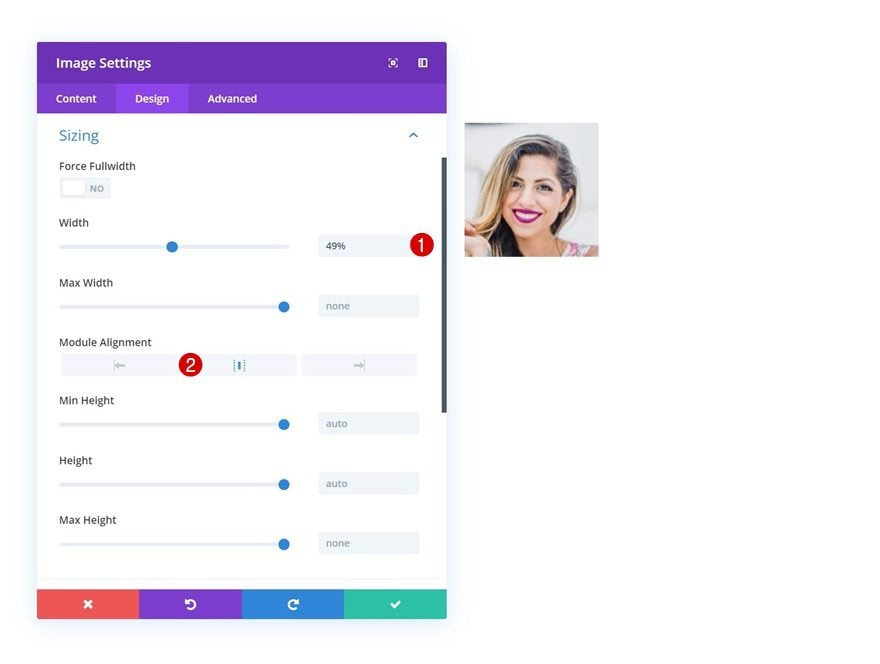

Modify the sizing settings next.

  • Width: 49%
  • Module Alignment: Center

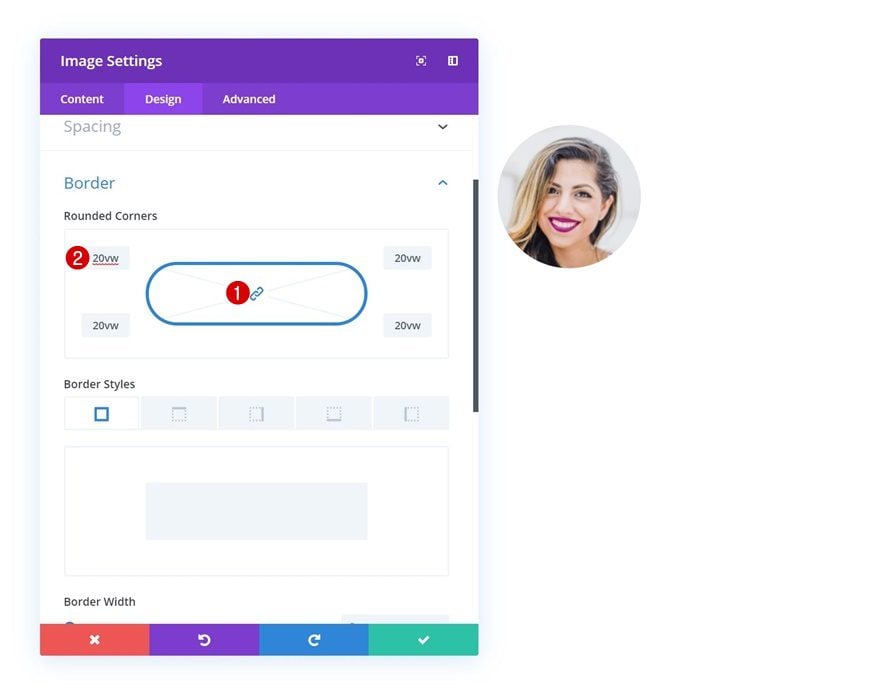

Border

And turn the image into a circle by adding a high value to each one of the corners in the border settings. We’re using ’20vw’ but you can use any high number you want.

Add Text Module to Column

Add Content

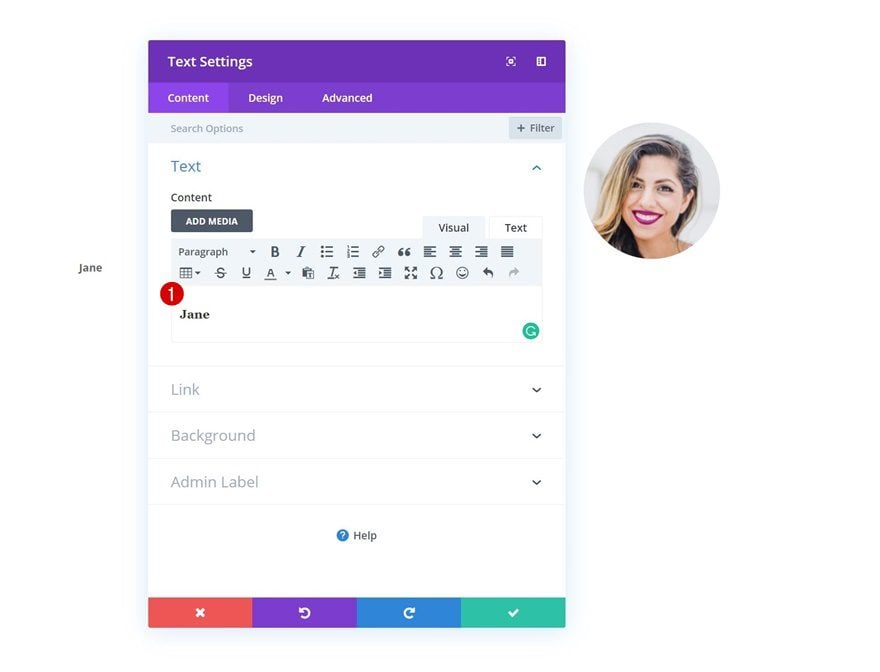

On to the next module, which is a Text Module. Add the family member’s name here.

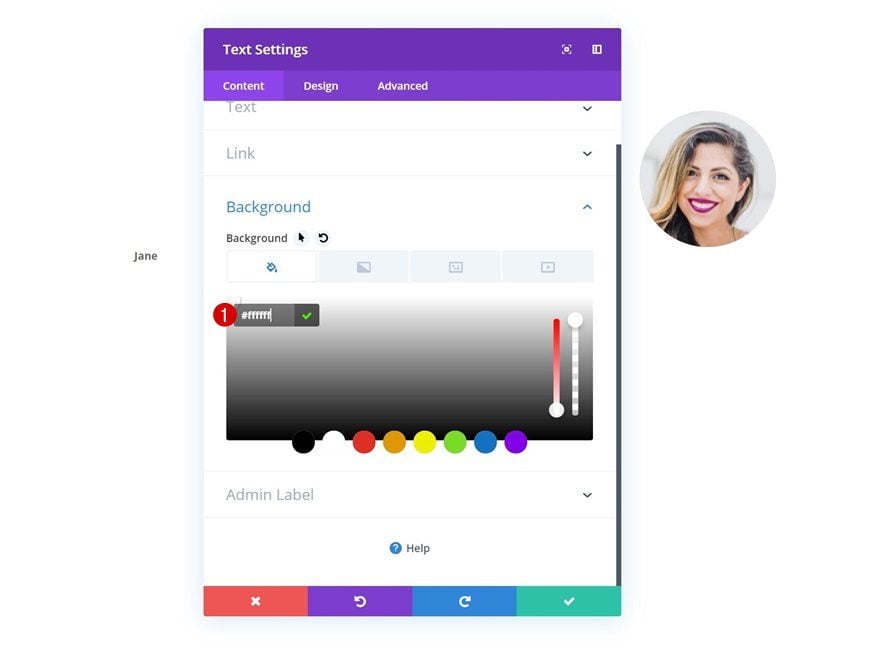

Background Color

Then, go to the background settings and change the background color into white.

  • Background Color: #ffffff

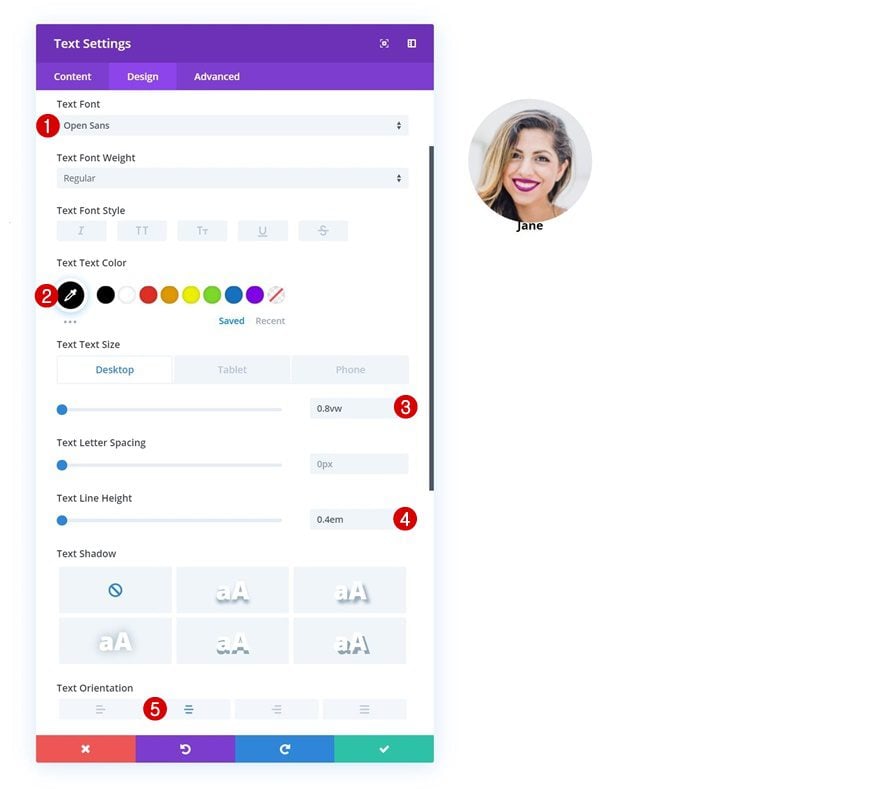

Text Settings

Modify the text settings next. If you want to create another look and feel for the family tree, feel free to play around with these settings.

  • Text Font: Open Sans
  • Text Color: #000000
  • Text Size: 0.8vw (Desktop), 1.2vw (Tablet), 1.9vw (Phone)
  • Text Line Height: 0.4em
  • Text Orientation: Center

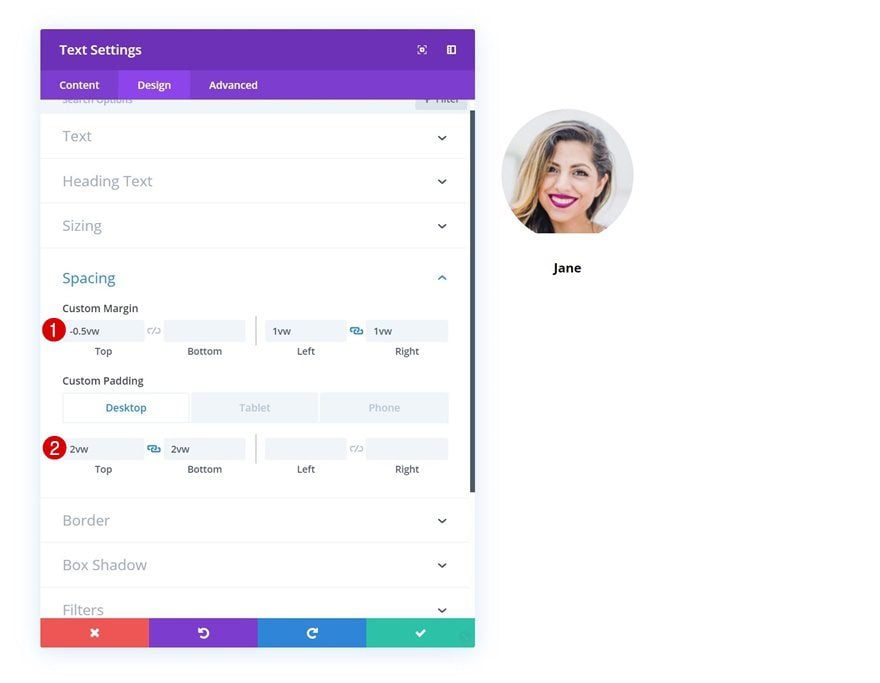

Spacing

Move on to the spacing settings and add some custom margin and padding values. These values will help us shape the Text Module and make it slightly overlap the Image Module.

  • Top Margin: -0.5vw
  • Left Margin: 1vw
  • Right Margin: 1vw
  • Top Padding: 2vw (Desktop), 4vw (Tablet), 5vw (Phone)
  • Bottom Padding: 2vw (Desktop), 4vw (Tablet), 5vw (Phone)

Border

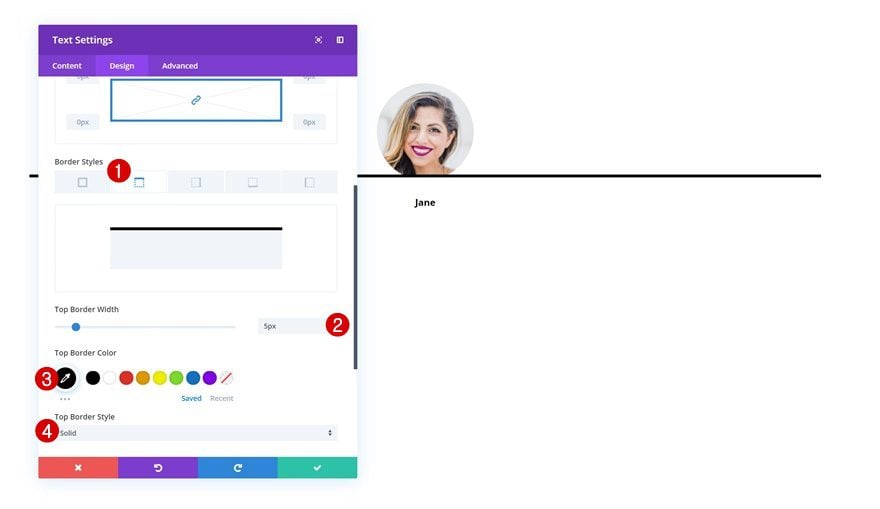

Move on to the border settings and add a top border as well.

  • Top Border Width: 5px
  • Top Border Color: #000000

Box Shadow

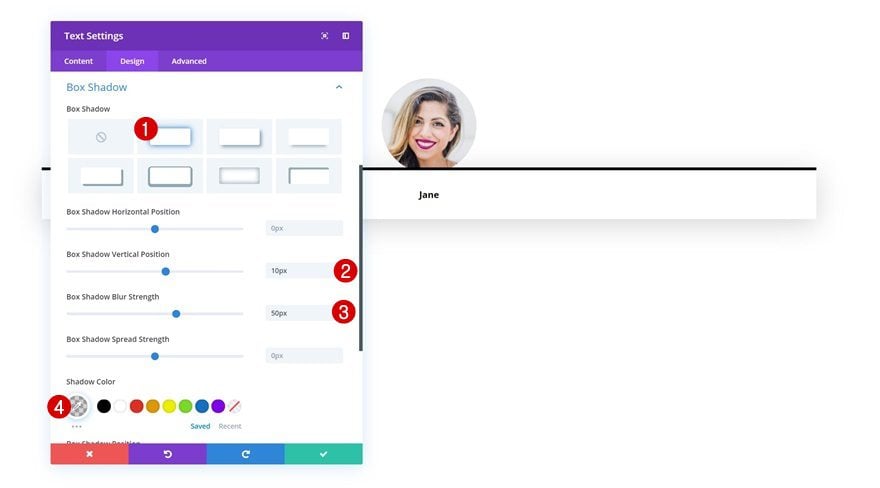

Along with a Box Shadow to create depth on the page.

  • Box Shadow Vertical Position: 10px
  • Box Shadow Blur Strength: 50px
  • Shadow Color: rgba(0,0,0,0.17)

Z Index

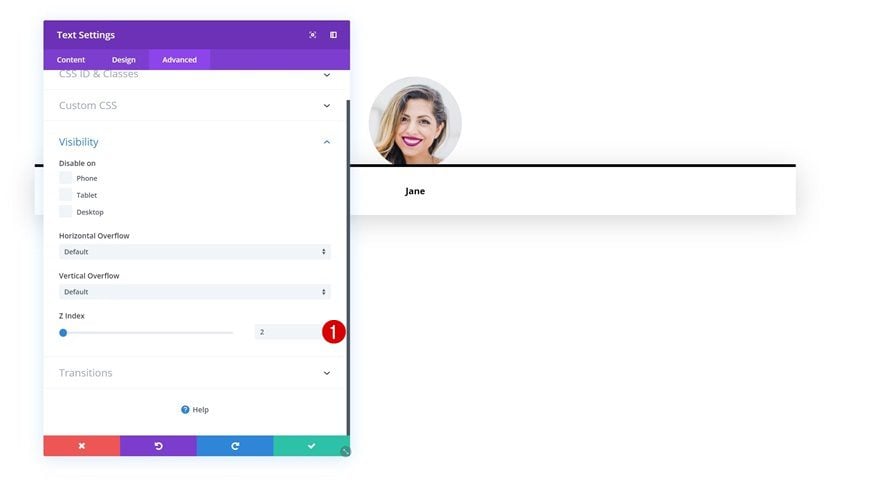

To make sure the Text Module remains on top of the Image Module, we’ll increase the Z index in the visibility settings of the Text Module.

  • Z index: 2

Clone Row Three Times

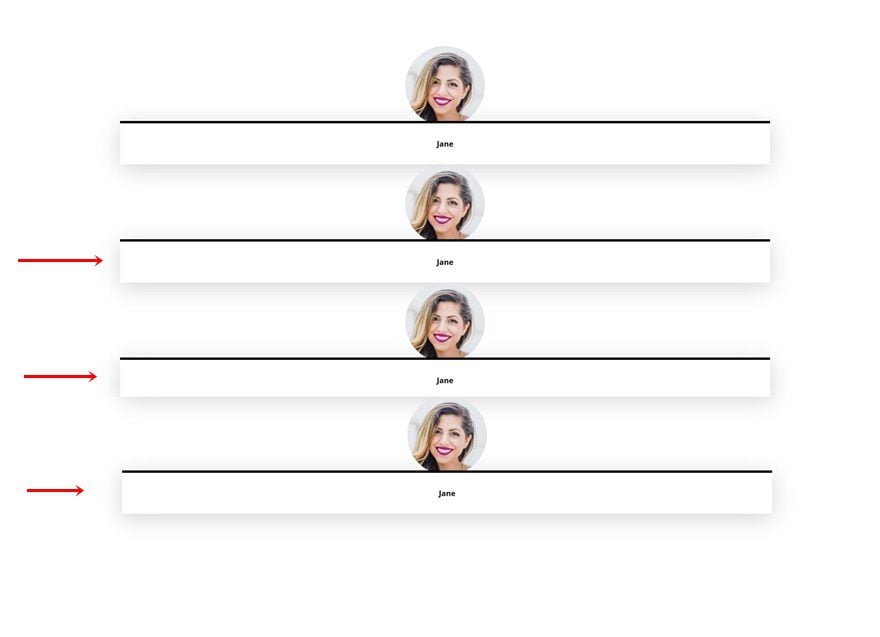

Once you’re done creating the first row and modifying all the modules in it, you can go ahead and clone the row three times. This will help us save time in the upcoming steps of the tutorial. Each one of these rows will be used to create a different level in the family tree.

Customize Row #1

Clone Both Modules 7 Times

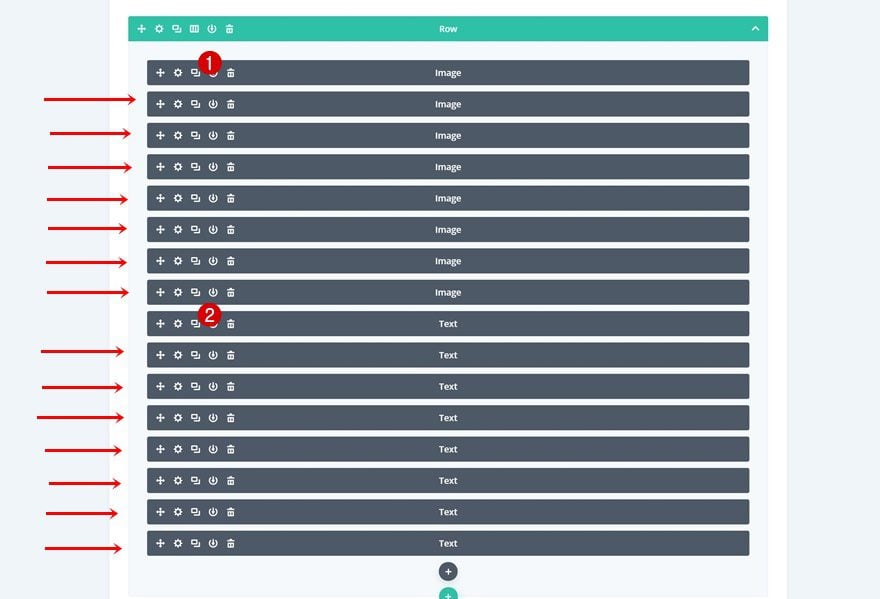

Let’s start customizing the first level of the family tree! Switch over to wireframe mode and clone the two modules in your row 7 times.  Once you’re done, the backend of your row should look like this:

family tree

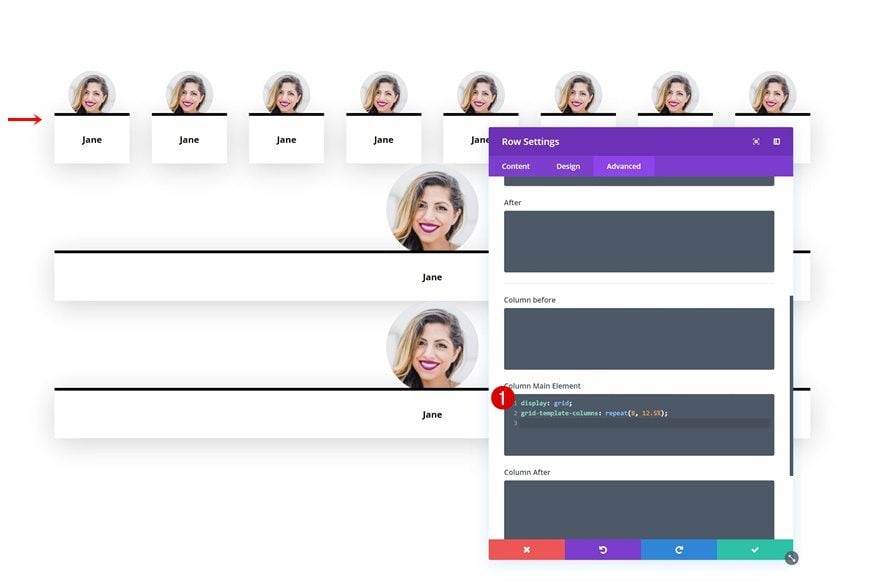

Column Main Element CSS

We’re turning the entire column into a grid. In total, there should be 16 modules in your column. We’re going to place these 16 modules into 8 grid columns. This means that each one of the 8 grid columns will contain 2 modules; one Image Module and one Text Module. Open the row settings of the first row and add the following lines of CSS code to the column main element:

display: grid;
grid-template-columns: repeat(8, 12.5%);

family tree

Customize Row #2

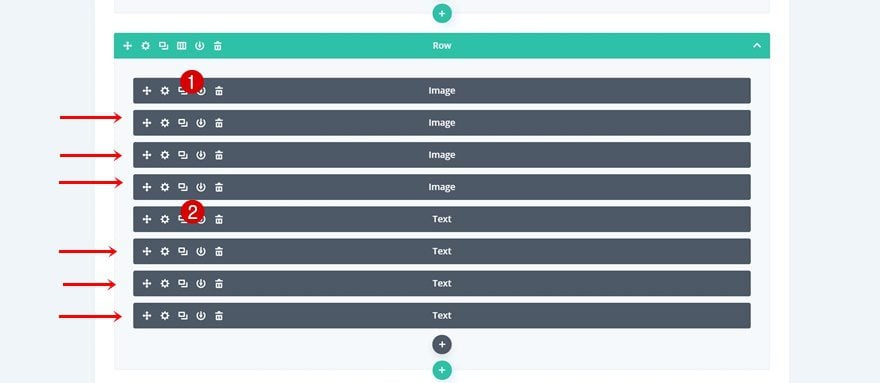

Clone Both Modules 3 Times

On to the second row! Here, we’re going to clone both modules 3 times.

family tree

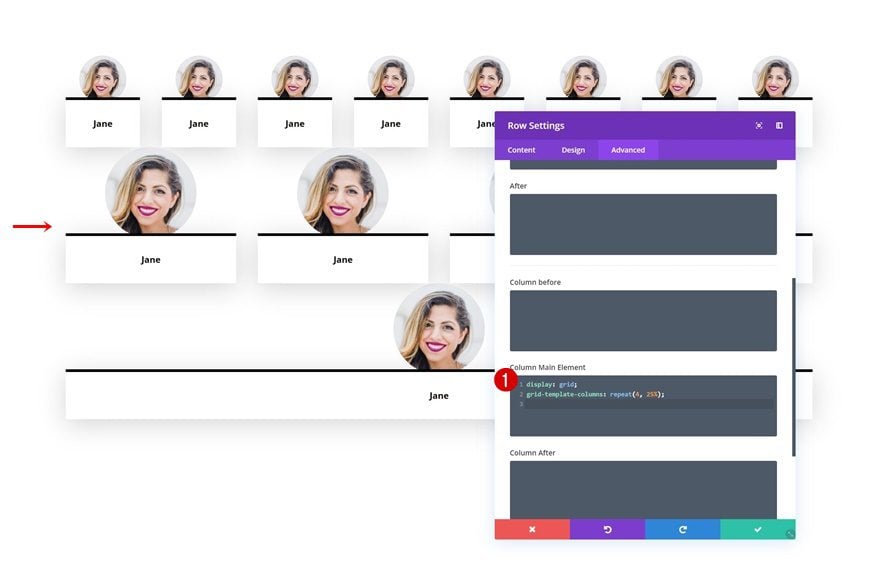

Column Main Element

We’re turning the column into a grid with 4 grid columns by adding the following lines of CSS code to the column main element of the row:

display: grid;
grid-template-columns: repeat(4, 25%);

The reason why we’re using this approach, instead of just choosing an existing row column structure with 4 columns, is that we want everything to remain 100% responsive on smaller screen sizes.

family tree

Customize Row #3

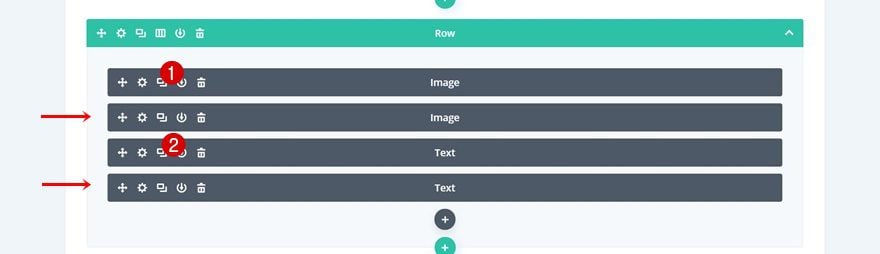

Clone Both Modules

On to the third row! Clone each the modules once.

family tree

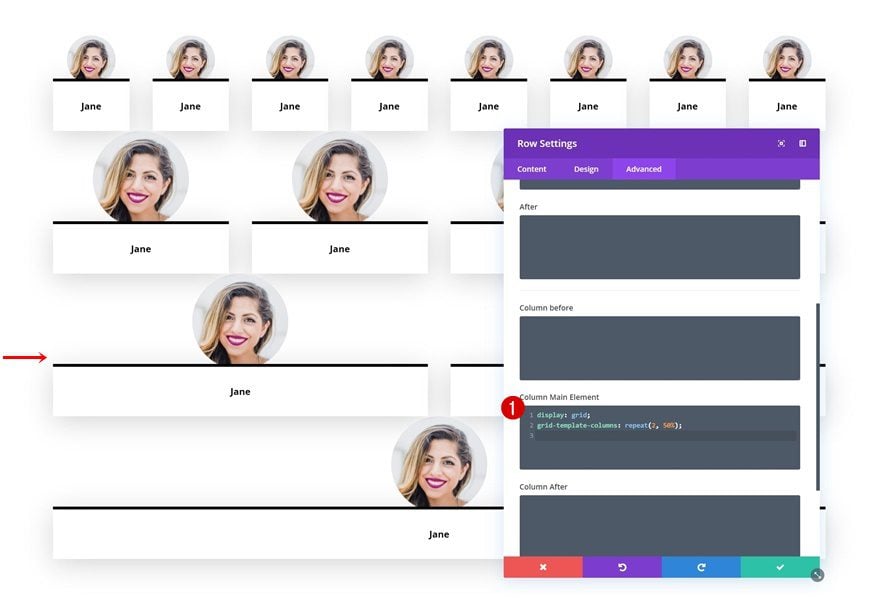

Column Main Element

Then, add the following lines of CSS code to the column main element:

display: grid;
grid-template-columns: repeat(2, 50%);

family tree

Customize Row #4

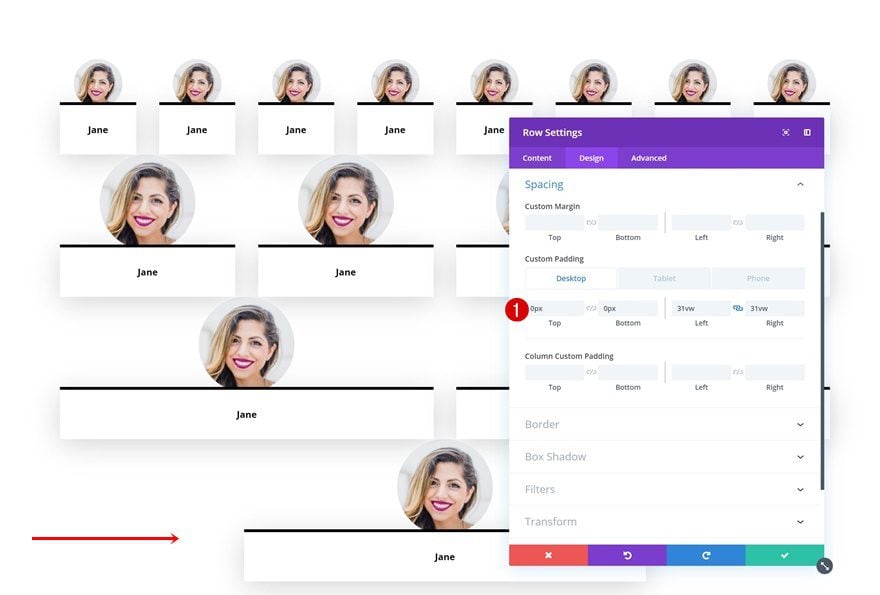

Row Spacing

On to the next and last row! Here, the only thing we need to do is modify the row padding values.

  • Top Padding: 0px
  • Bottom Padding: 0px
  • Left Padding: 31vw
  • Right Padding: 31vw

family tree

Connecting Family Members Using Image Modules

Add Row #1

Column Structure

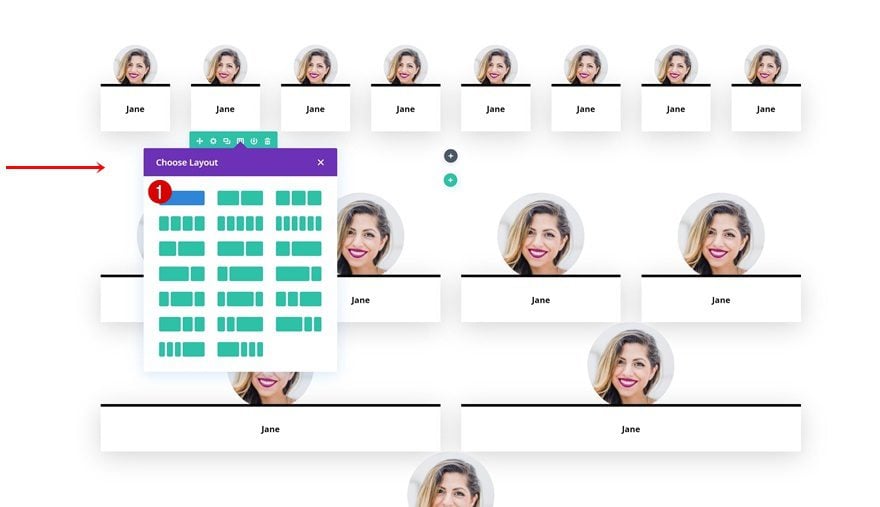

Now that we have lined up all the family members, we can start connecting them! To do that, add a new row in between the first and second row.

family tree

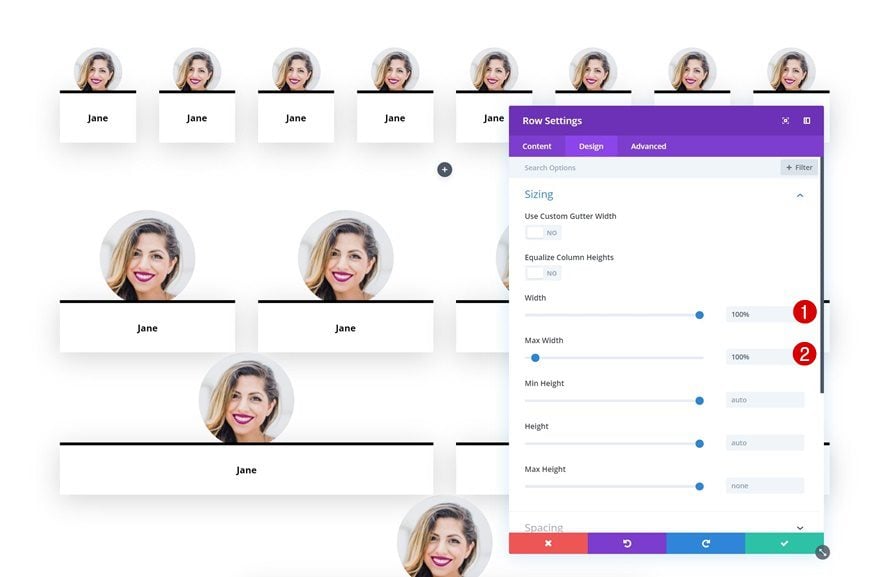

Sizing

Without adding any modules yet, open the row settings and change the sizing values.

  • Width: 100%
  • Max Width: 100%

family tree

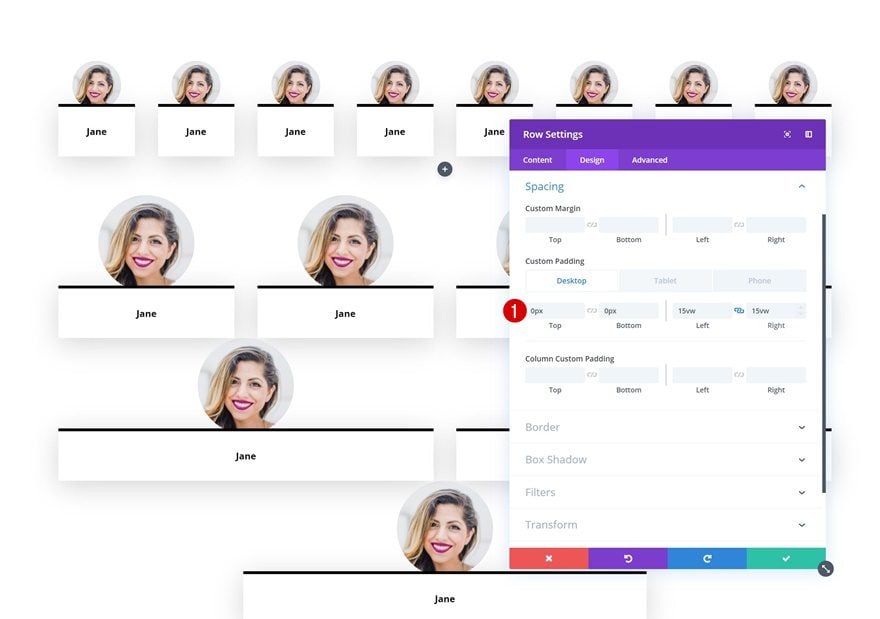

Spacing

Go to the spacing settings next and add some custom padding values.

  • Top Padding: 0px
  • Bottom Padding: 0px
  • Left Padding: 15vw (Desktop), 0vw (Tablet & Phone)
  • Right Padding: 15vw (Desktop), 0vw (Tablet & Phone)

family tree

Add Image Module to Column

Upload Illustration

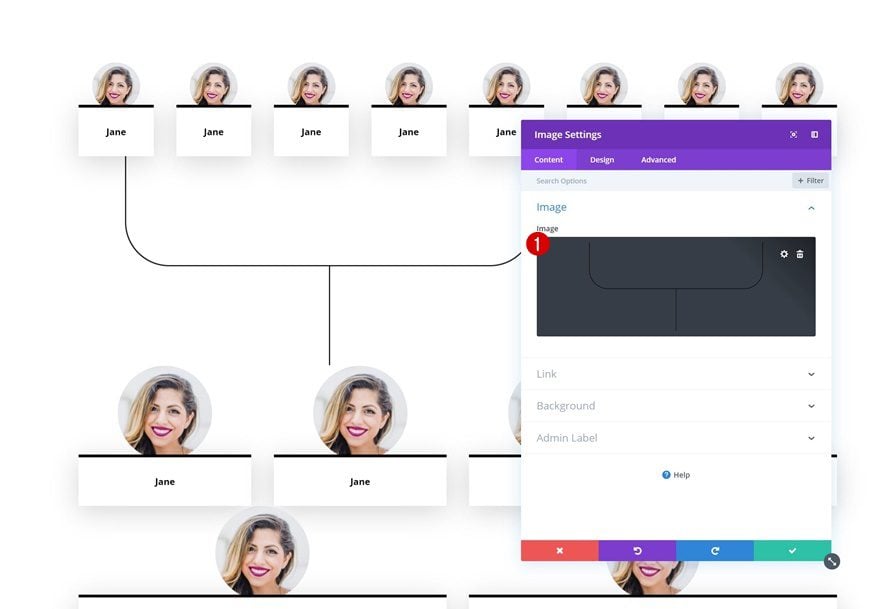

Then, add an Image Module and upload the illustration which you can find in the folder you’ve downloaded at the beginning of this post.

family tree

Sizing

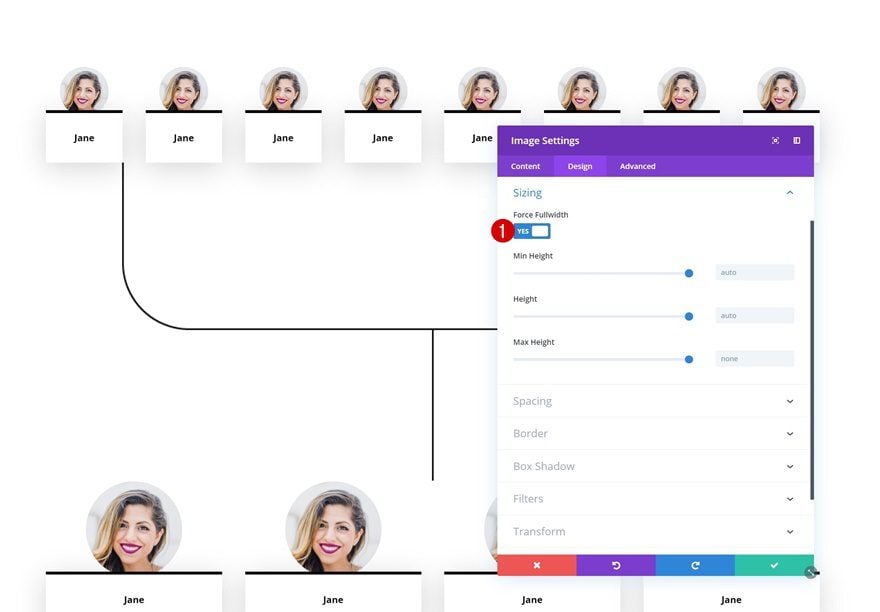

Go to the sizing settings of the Image Module and enable the ‘Force Fullwidth’ option.

  • Force Fullwidth: Yes

family tree

Spacing

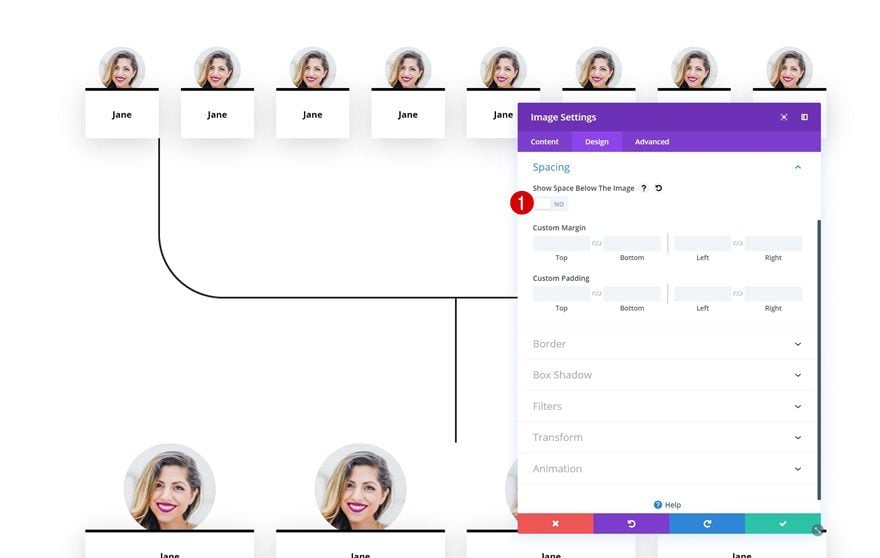

Make sure you disable the ‘Show Space Below the Image’ option in the spacing settings.

  • Show Space Below The Image: No

family tree

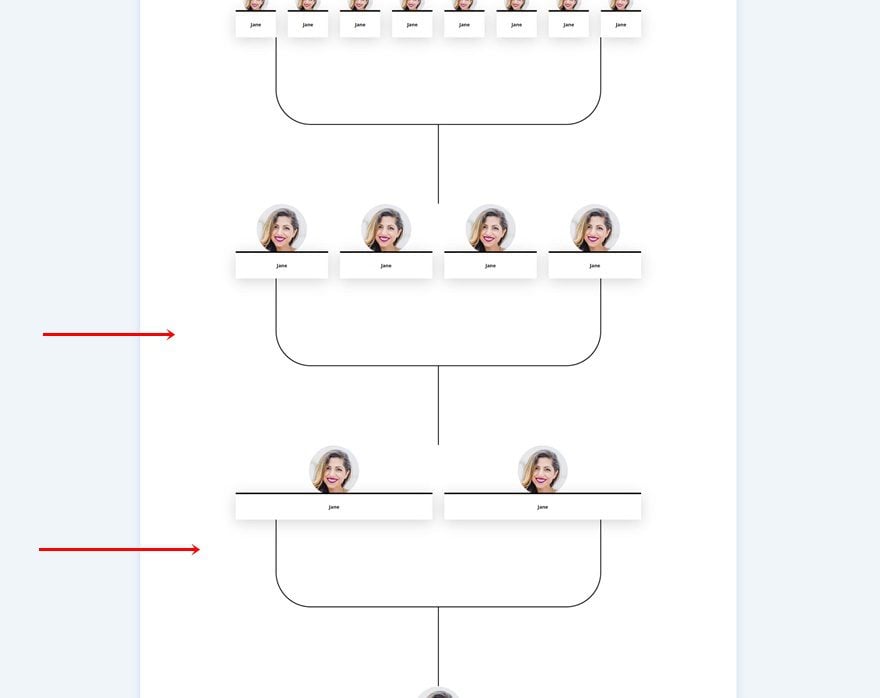

Clone Row Twice & Change Their Position

Once you’re done modifying the row and the Image Module in it, go ahead and clone it twice. Place the duplicates accordingly:

family tree

Customize Row #1

Clone Image Module Three Times

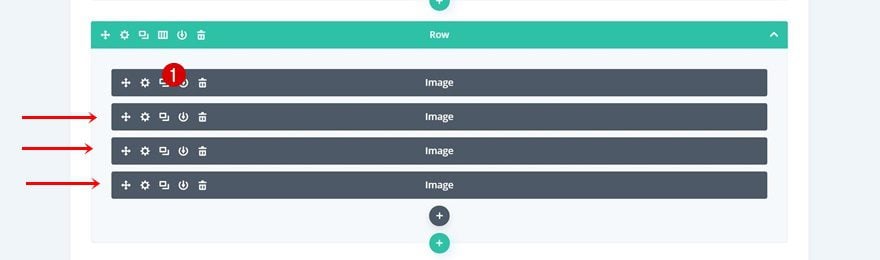

Go back to the first row and clone the module 3 times.

family tree

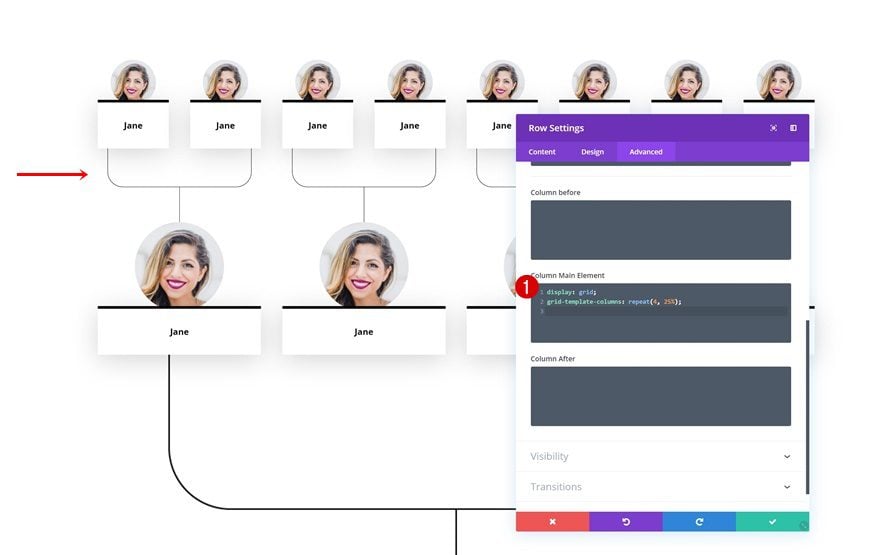

Column Main Element

Place these Image Modules in a grid with 4 grid columns by adding the following lines of CSS code to the column main element of the row:

display: grid;
grid-template-columns: repeat(4, 25%);

family tree

Customize Row #2

Clone Image Module

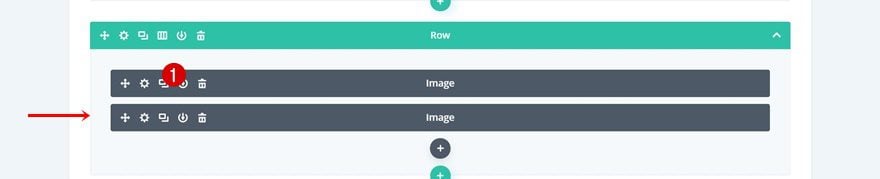

Move on to the second row and clone the Image Module once.

family tree

Column Main Element

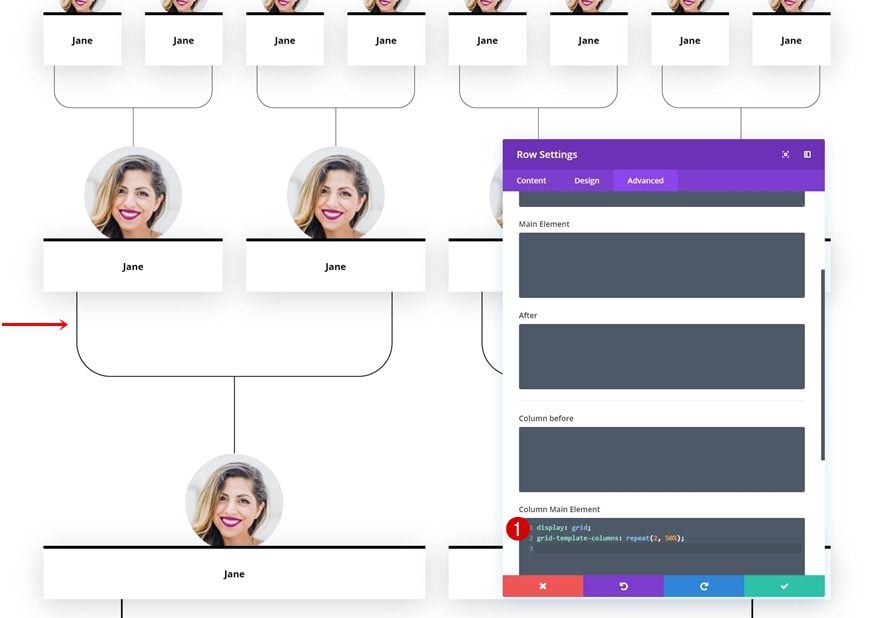

Place both modules in a grid with two grid columns by adding the following lines of CSS code to the column main element of the row:

display: grid;
grid-template-columns: repeat(2, 50%);

family tree

Customize Row #3

Change Spacing

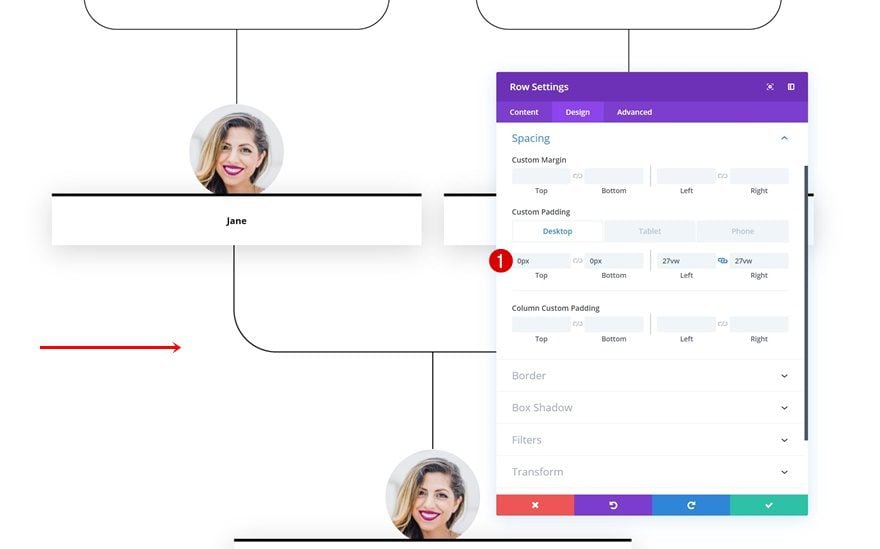

On to the next and last duplicate. Here, the only thing you’ll need to do is change the custom padding values and you’re done!

  • Top Padding: 0px
  • Bottom Padding: 0px
  • Left Padding: 27vw
  • Right Padding: 27vw

family tree

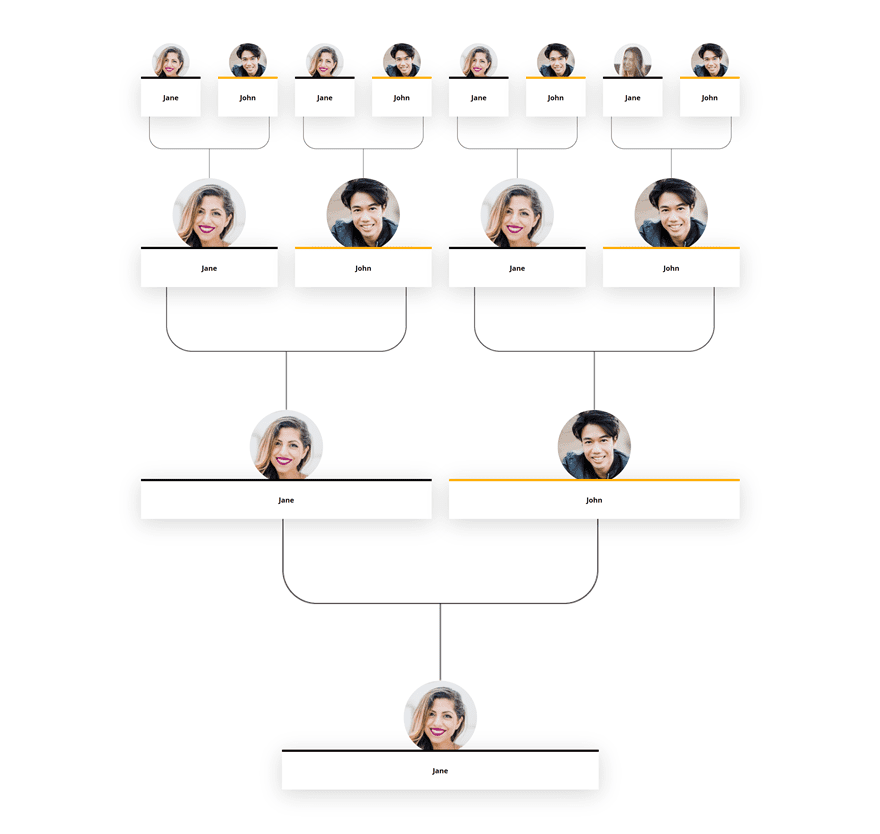

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

family tree

Mobile

family tree

Final Thoughts

In this post, we’ve shown you how to create a modern family tree with Divi! The family tree we’ve recreated looks great across all screen sizes. At the beginning of this tutorial, you were also able to download the JSON file for free and get started with it right away. If you have any question or suggestions, make sure you leave a comment in the comment section below!
