A unique navigation design can give any website a bit of an edge. 4-corner fixed navigation, for example, is a good way to give viewers more options to interact with your website’s design. In fact, it adds another layer to your UX design throughout the site.
In this post, we are going to show you how to create your own 4-corner fixed navigation. We’ll explain how to create two slightly different styles, but these are just the tip of the iceberg. Since the navigation is created with Divi’s built-in elements, the customization possibilities are endless.
We hope this idea will inspire you to create amazing 4-corner fixed navigation designs for your upcoming Divi projects.
Let’s get started.

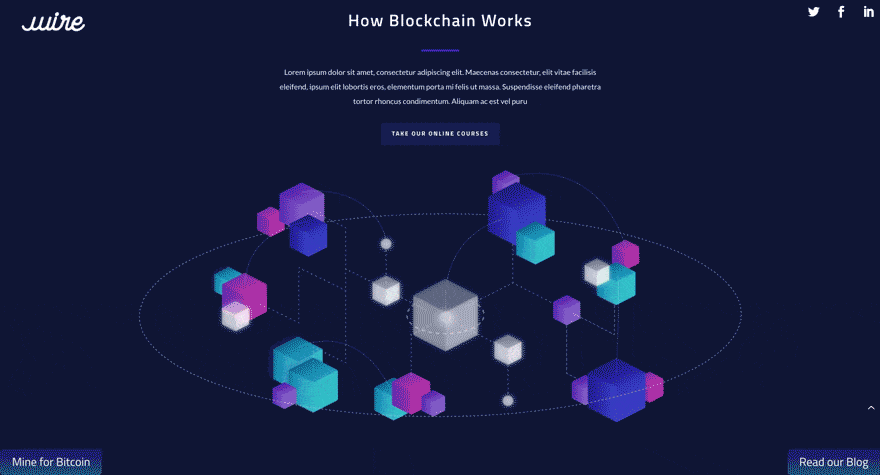

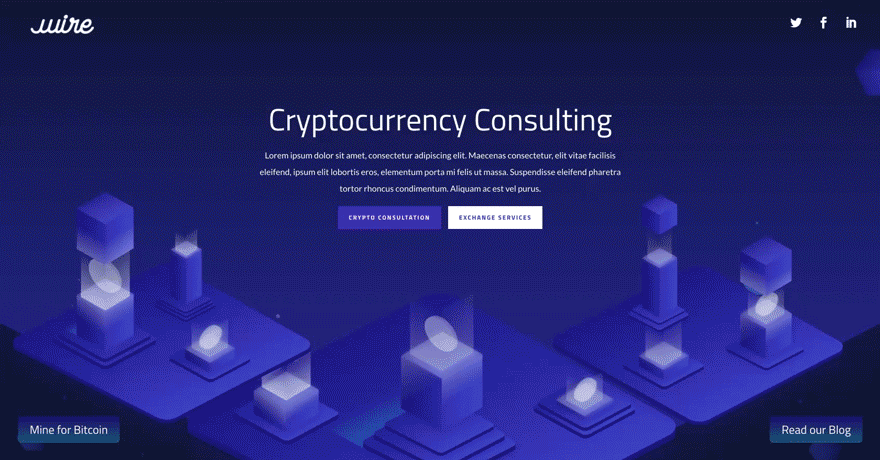

Let’s take a quick look at the 4-corner navigation we’ll be creating today. The first style places the buttons at the border of the screen, and the other has an interior float.
Create a New Blank Page

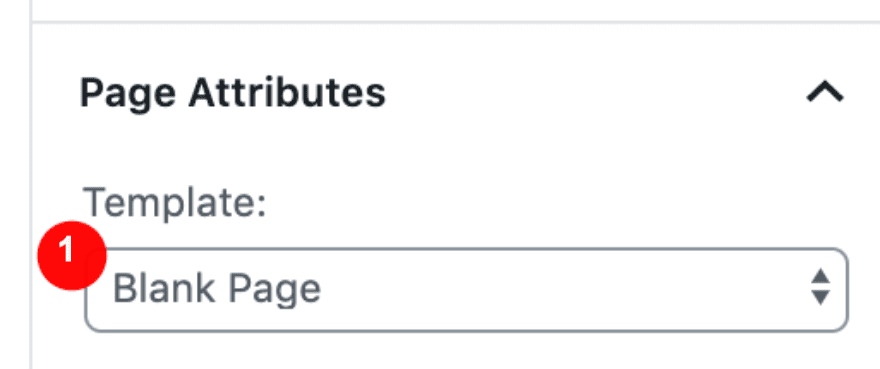

Open a new page and before editing with Divi, select ‘Blank Page’ in the Page Attributes. After that is done, enable the Divi Builder.

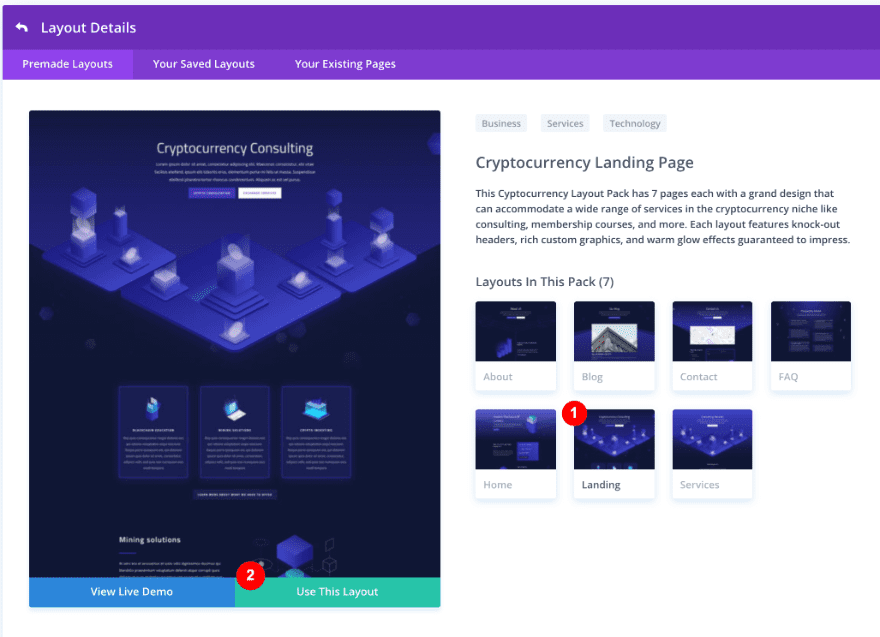

Upload Cryptocurrency Landing Page Layout

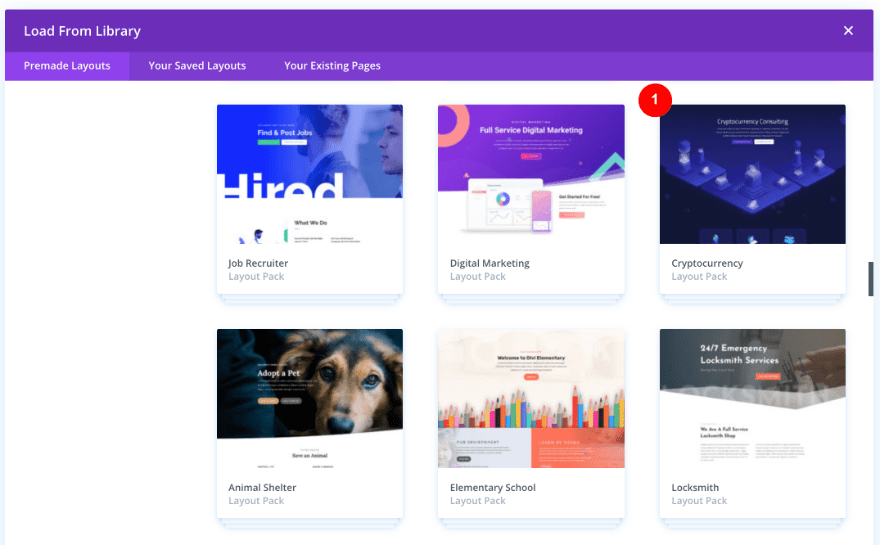

Once in the Divi Visual Builder, upload the Cryptocurrency Layout Pack’s landing page from the Premade Layouts tab.
2. Create a New Section With a 4-Column Row

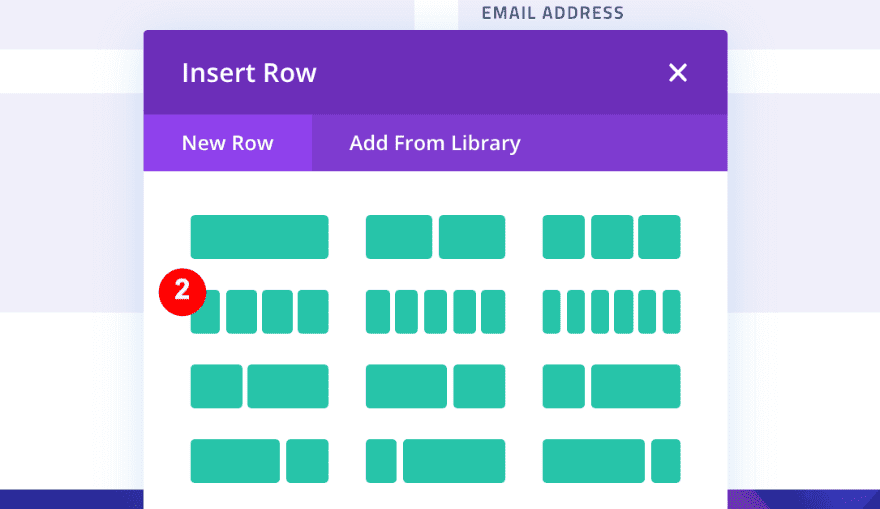

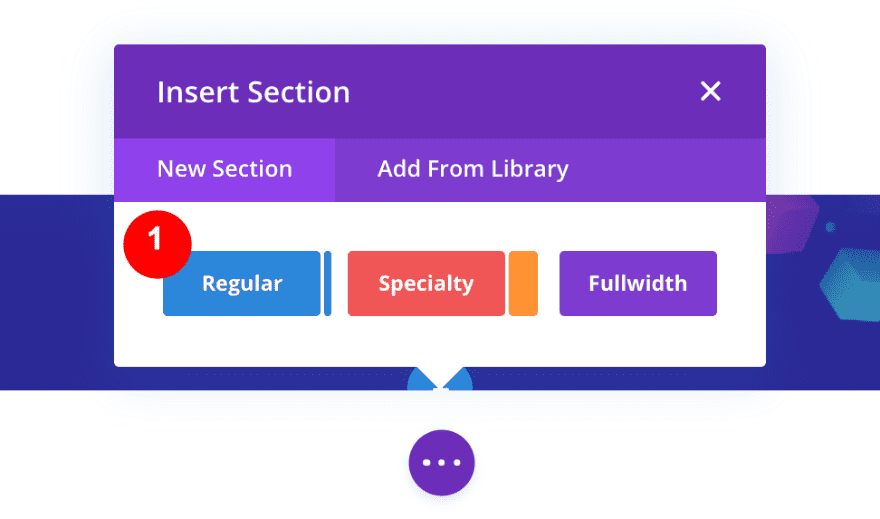

Add a New Regular Section With 4-Column Row
To create the 4 navigation items, we need a new section with a 4-column row. Scroll all the way to the bottom of the page and add a new regular section. Then, choose a row with 4 equally-sized columns.

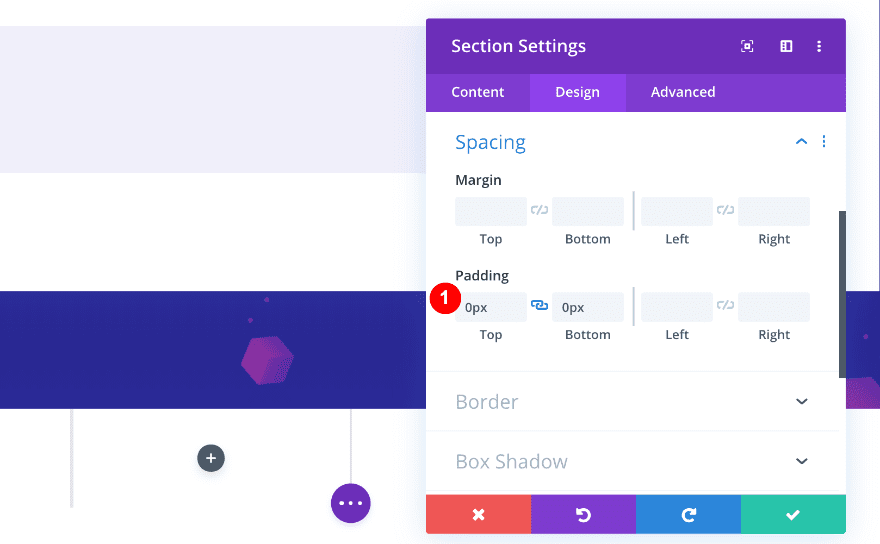

Remove The Default Padding of the Section
Before adding modules, make sure to remove padding of the section by adding ‘0px’ to the top and bottom. Also, doublecheck the section has no background color or gradient background.
- Top Padding: 0px
- Bottom Padding: 0px

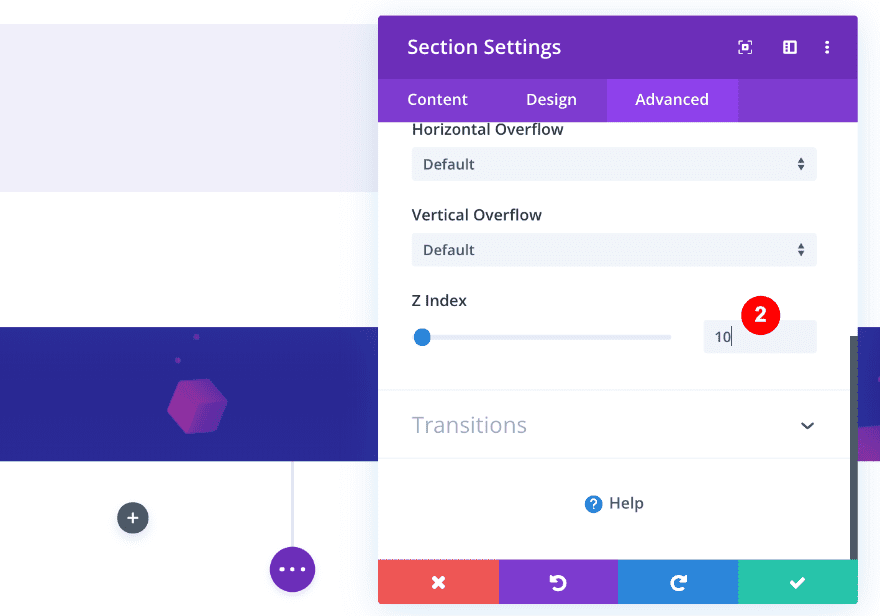

Increase the Z Index
We want this section to be above all the others as we scroll. That’s why we need to increase the Z Index value of the section. To do that, open the Advanced Tab and, go to the visibility settings and increase the Z Index.
- Z Index: 10
3. Adjust The Sizing of The Row

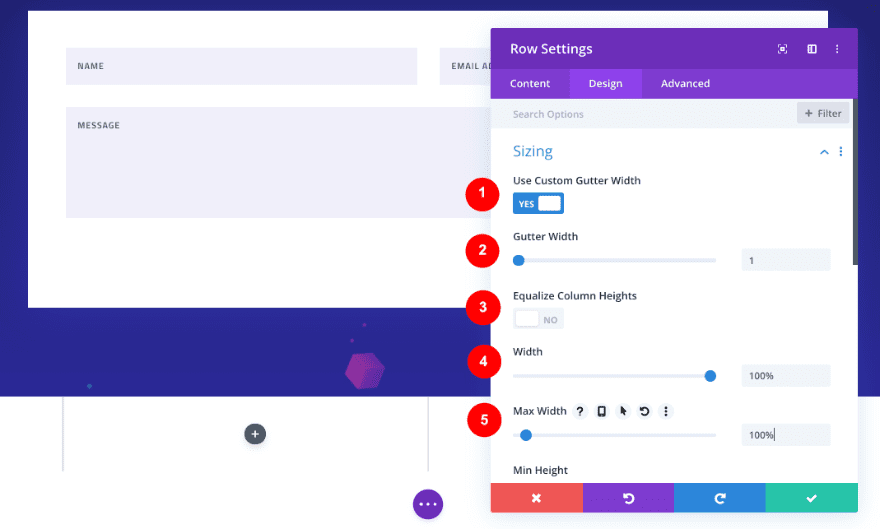

Next, we need to adjust the row’s sizing settings. Open the design tab and adjust the settings accordingly:
- Use Custom Gutter Width: Yes
- Gutter Width: 1
- Equalize Column Heights: No
- Width: 100%
- Max Width: 100%

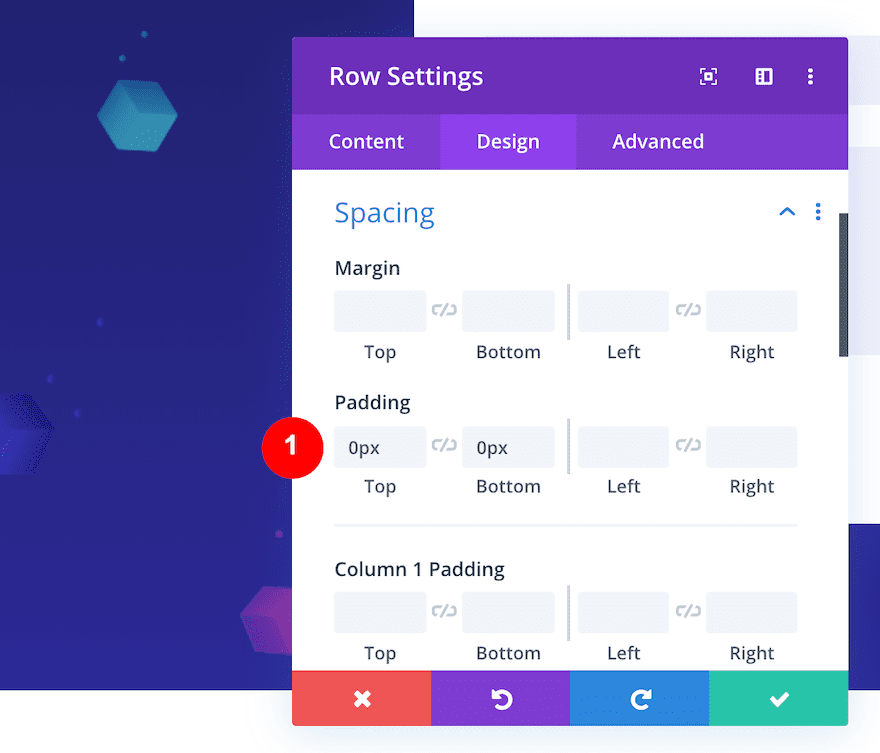

Remove The Default Padding of the Row
To make sure no space remains at the bottom of our page, remove the default padding of the row. In the Design tab, change the Spacing inputs to ‘0px’ for both top and bottom padding.
Add Modules to the Columns.

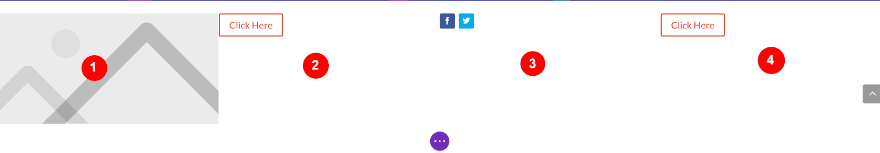

Now it’s time to add some modules to each column, starting from left to right.
- Column #1: Image
- Column #2: Button
- Column #3: Social Media Follow
- Column #4: Button
4. Style Each Column
Column #1 – Image Module

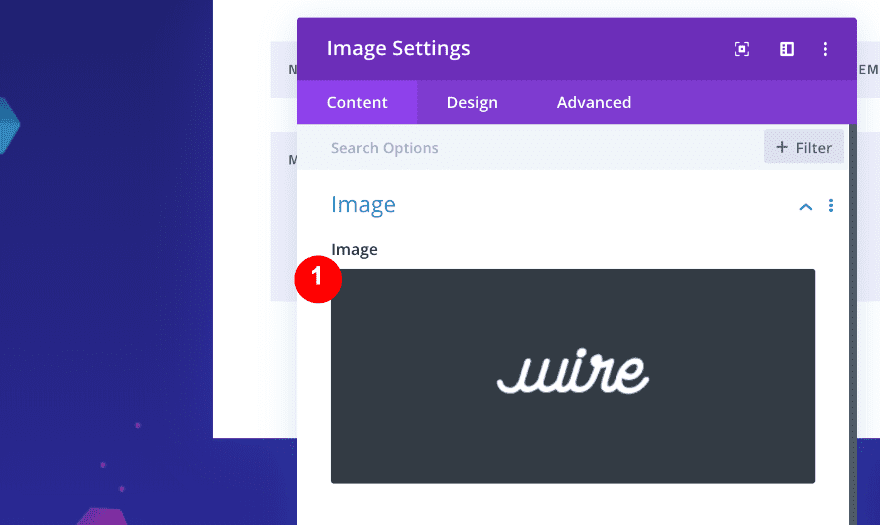

Add a Company Logo
Open the Image Module in column #1. Upload your logo (width of 220px and height of 100px). Make sure it’s a transparent image where the logo is centered.

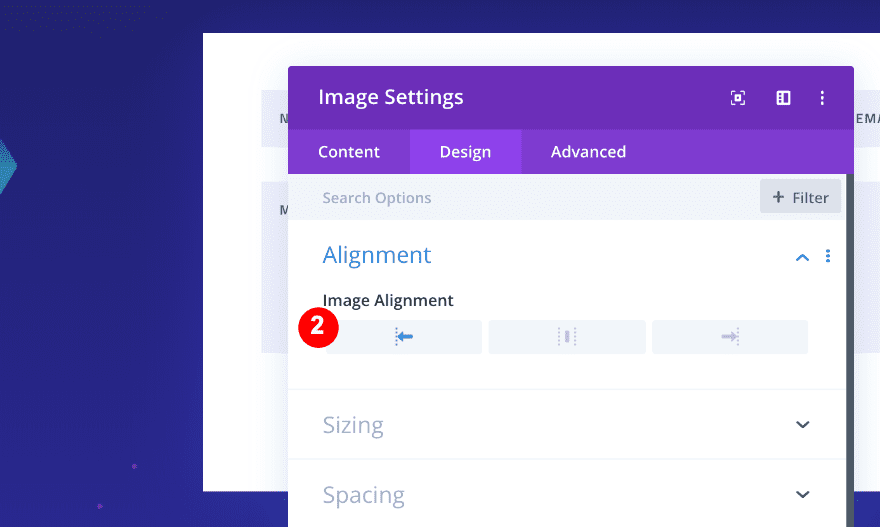

Align The Module
We want the logo to be placed at the top left corner of our page, so we need to align the module to the left. Open the Design tab in the Image Module and select left Image Alignment.
- Alignment: left
Add Custom CSS to Fix The Module’s Position

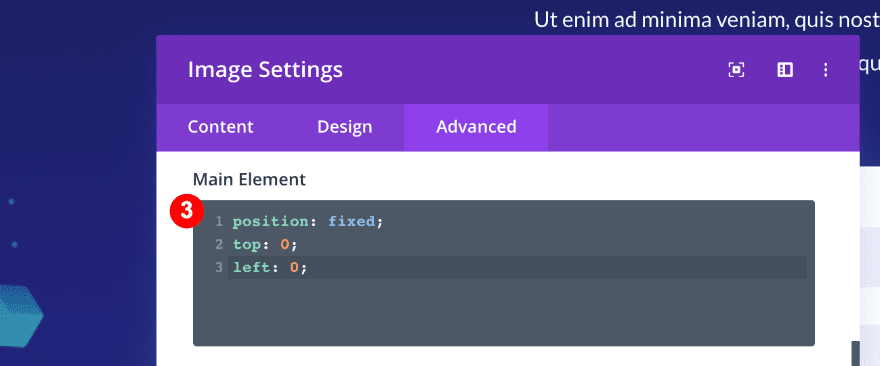

To make sure the position of the module stays fixed, go to the Advanced tab and add Custom CSS to the Main Element.
position: fixed; top: 0; left: 0;
Column #2 – Button
Add a Button
Now, in Column #2, add a Button Module.
Style the Button

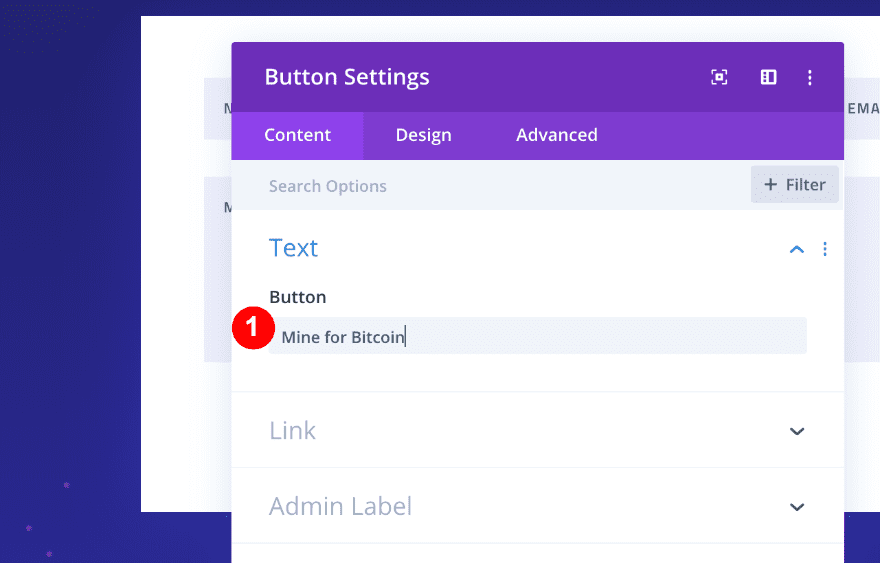

In the Content tab, add text for your button.
- Content-Text: Mine for Bitcoin

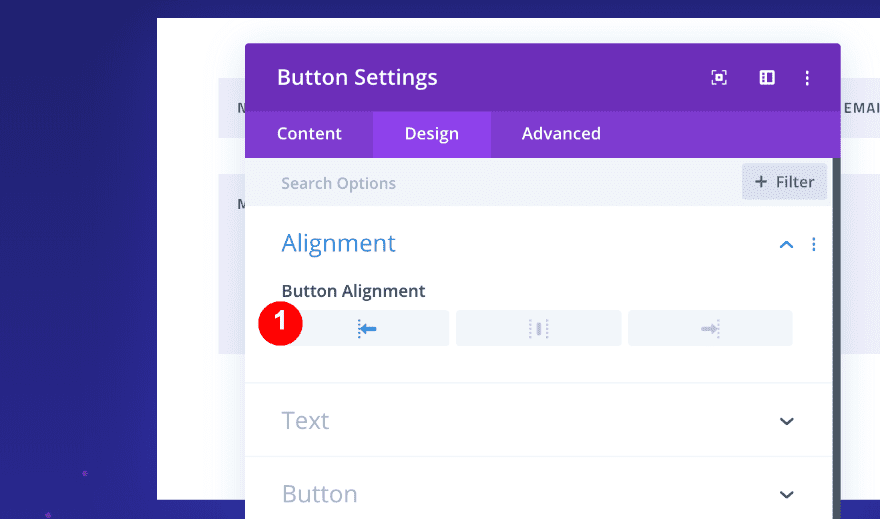

Next, in the Design tab, choose left Button Alignment.
- Alignment: left

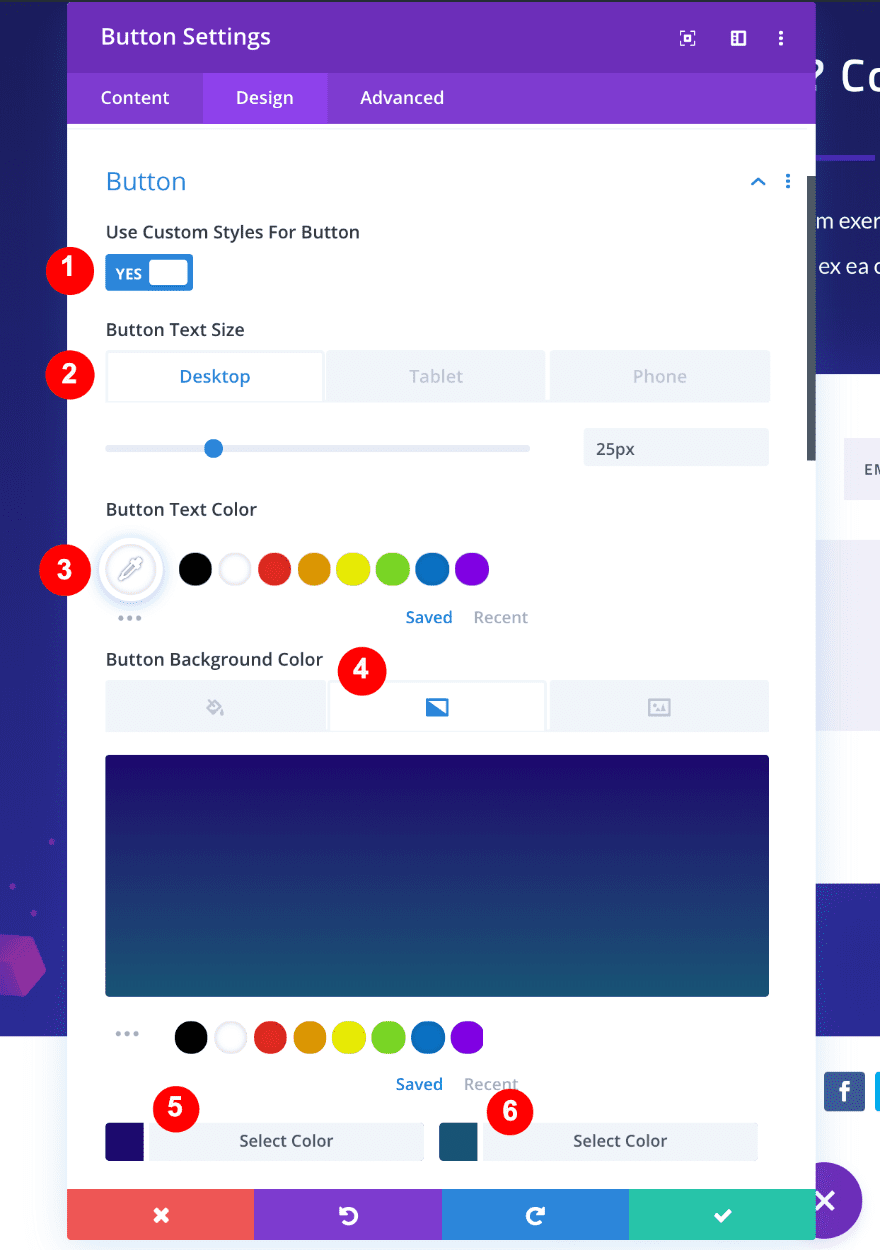

After that, slide the Custom Button Styles to yes and adjust the values accordingly:
- Custom Button Styles: Yes
- Button Text Size: Desktop; 25px, Tablet: 20px, Phone:20px
- Button Text Color: White, #ffffff
- Button Background Color: Gradient
- Top color:#1c076d, Bottom color: #185475
- Gradient Type: Linear
- Button Border Radius: 7 px
- Button Font: Tantillium Web (the same as the layout)
- Show Button Icon: Yes
- Button Icon: Traffic Cone
- Button Icon Color: White, #ffffff
- Button Icon Placement: Right
Add Custom CSS to Fix The Module’s Position

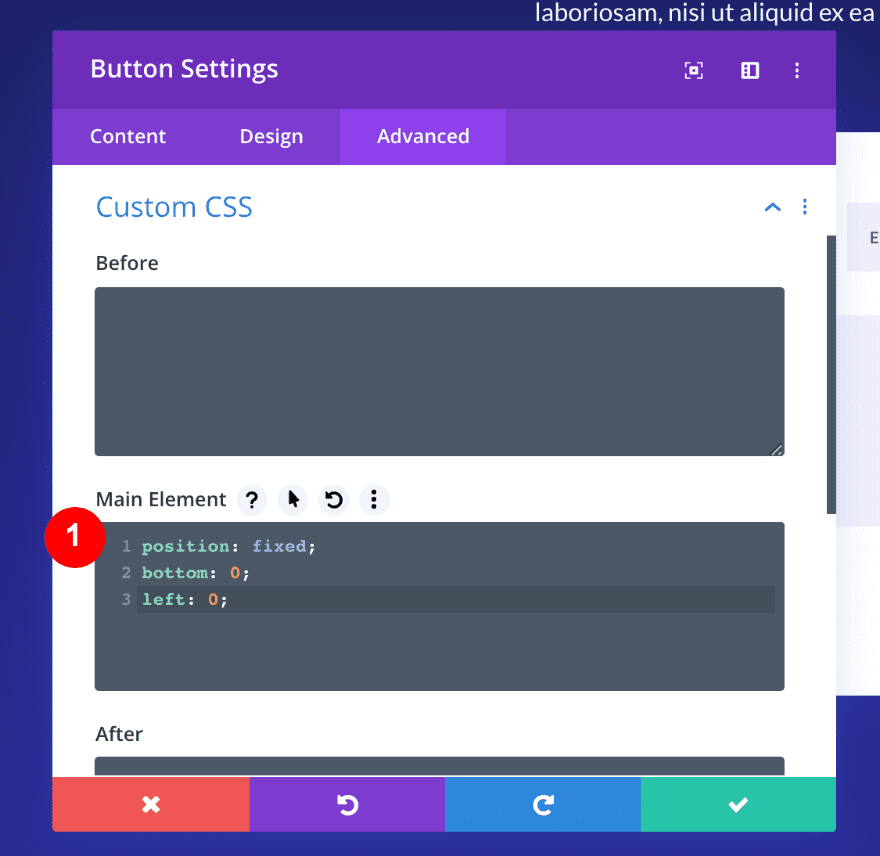

Finally, open the Advanced tab and add Custom CSS to fix the position of the module to the bottom left corner of the page.
position: fixed; bottom: 0; left: 0;
Column #3 – Social Media Follow
Add a Social Media Follow Module

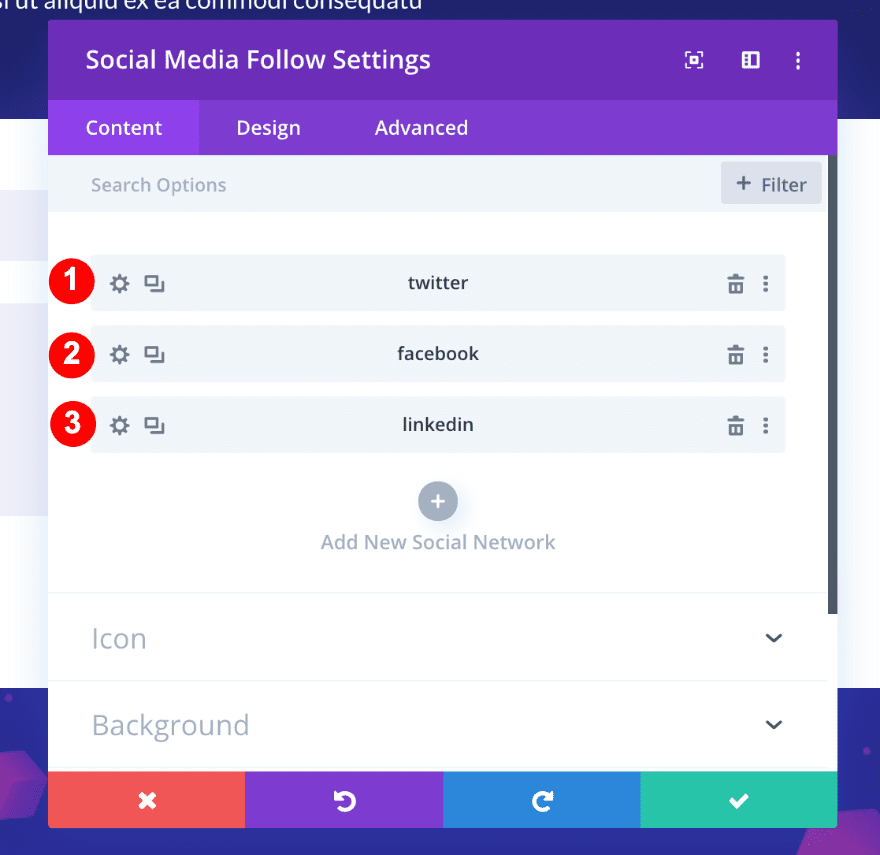

On to the third column. This time, we’ll need a Social Media Follow Module. Add three social networks of your choice.

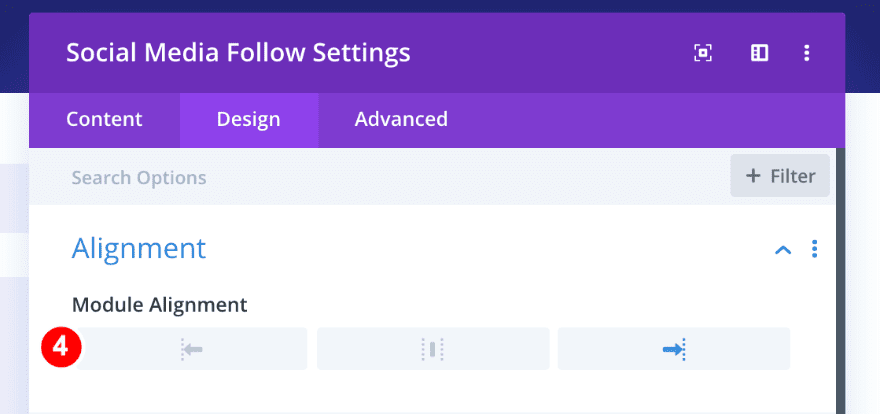

Next, in the Design tab, choose right Module Alignment.
- Alignment: Right
Style The Social Media Icons

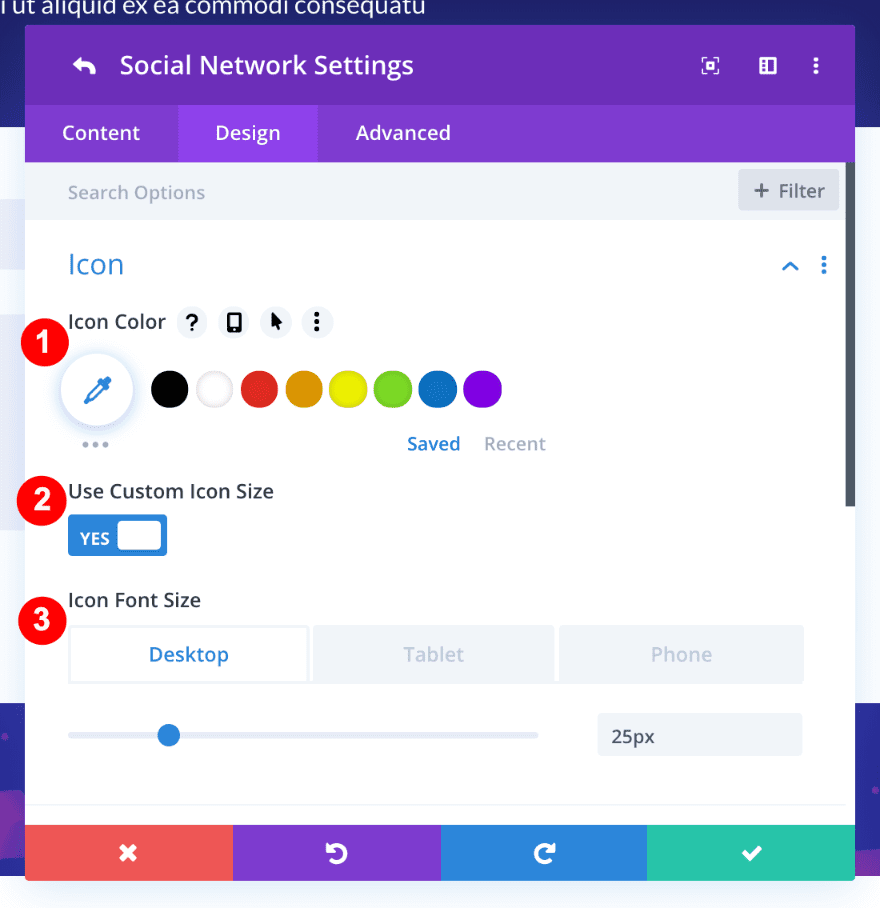

Open the first social network’s individual settings, go to the design tab and change the icon settings accordingly:
- Icon Color: White #ffffff
- Use Custom Icon Size: Yes
- Icon Font Size: Desktop; 25px, Tablet: 20px, Phone:20px
- Background: None

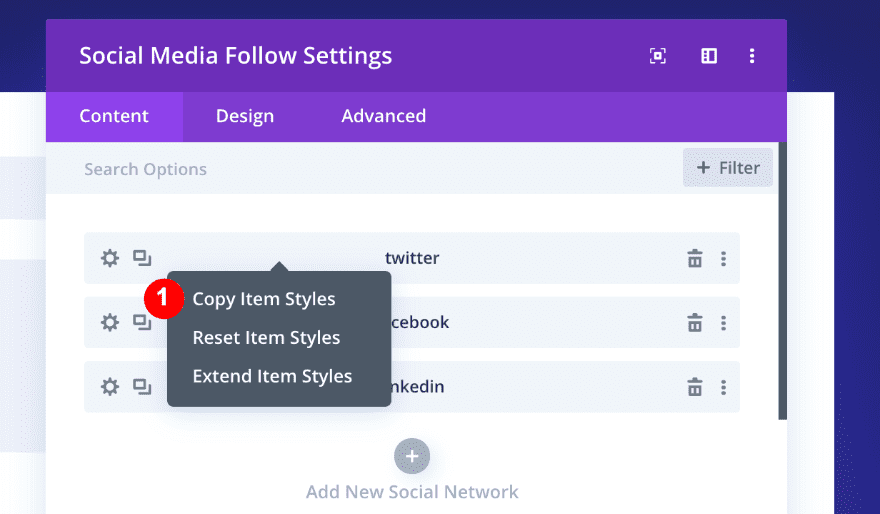

Copy and Paste The Item Styles

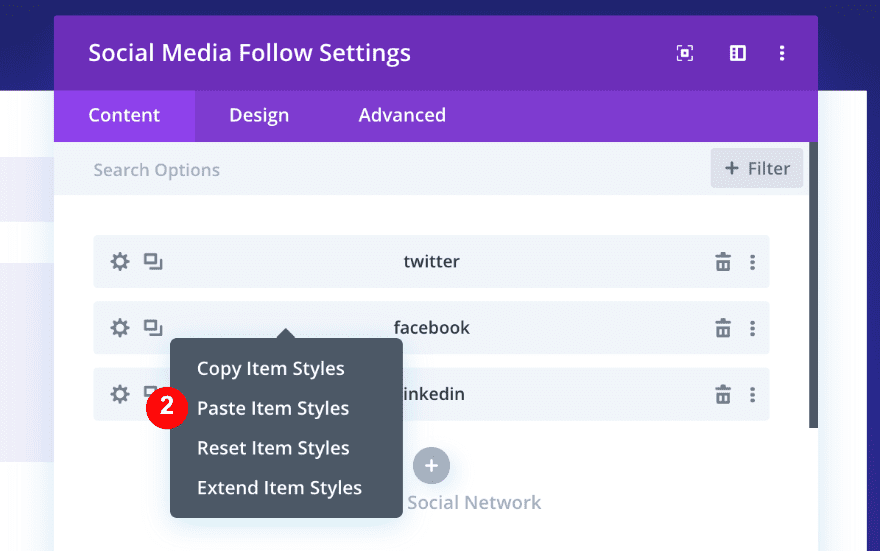

Go back to the main Social Media Follow window, right-click on the first item and select ‘Copy Item Styles.’ Then right-click on the two remaining social networks and paste the styles.
Add Custom CSS to The Module

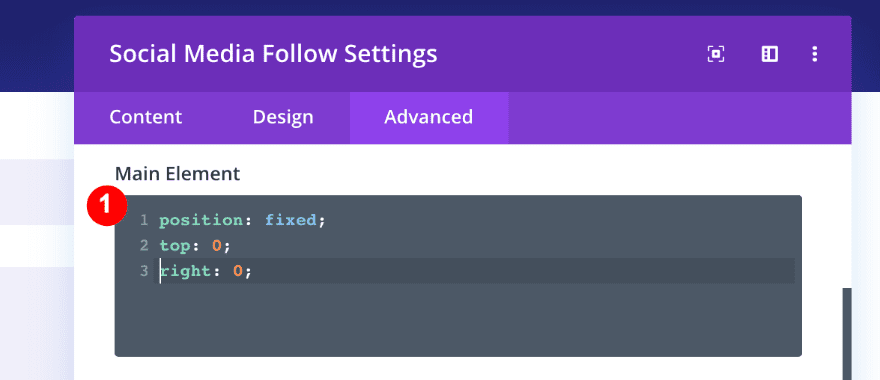

Finally, in the Advanced Tab, add the following CSS code to make the module stick to the top right corner of the page:
position: fixed; top: 0; right: 0;
Column #4 – Button

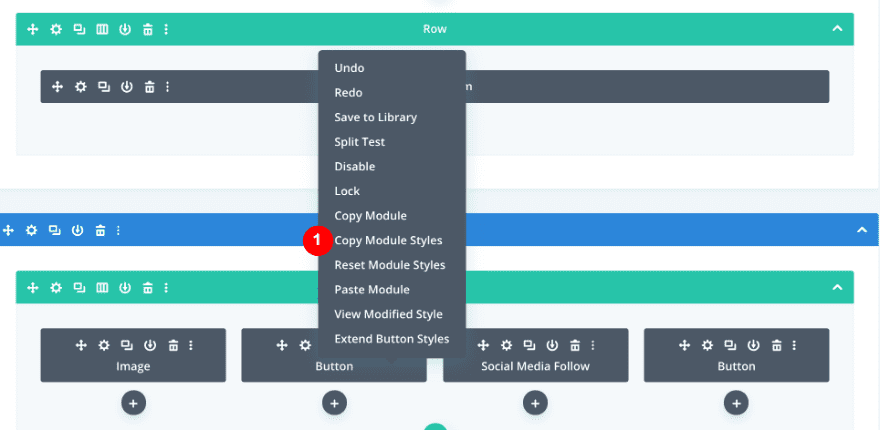

Copy The Module Styles from Module #2 and Adjust
In order to get the button in Module #4 to look exactly the same as the button in Module #2, we will use the ‘Copy Module Styles’ option. First, right-click on the Button Module in column 2, click on ‘Copy Module Styles’ and then paste it to Button Module in column 4.

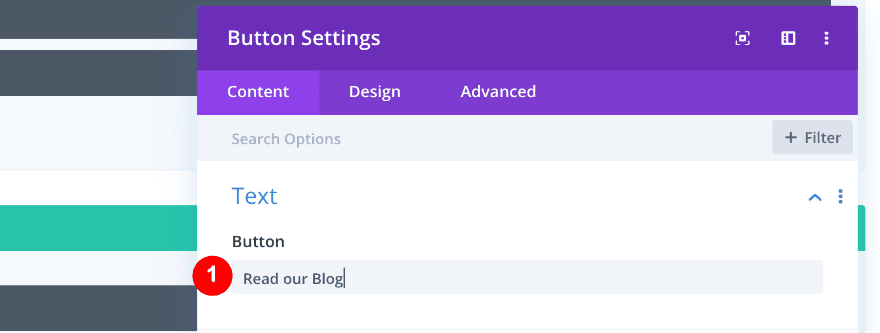

Now it’s time to change the settings in the Content tab. First, change the text content.
- Text: from “Mine for Bitcoin” to “Read our Blog”

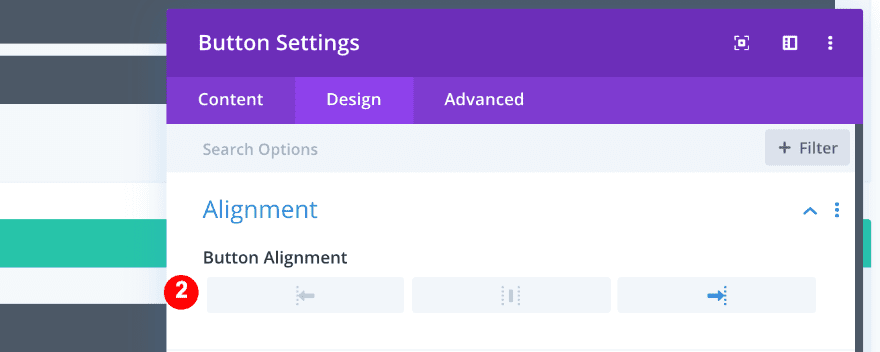

Then, change the Button Alignment.
- Alignment: From left to right

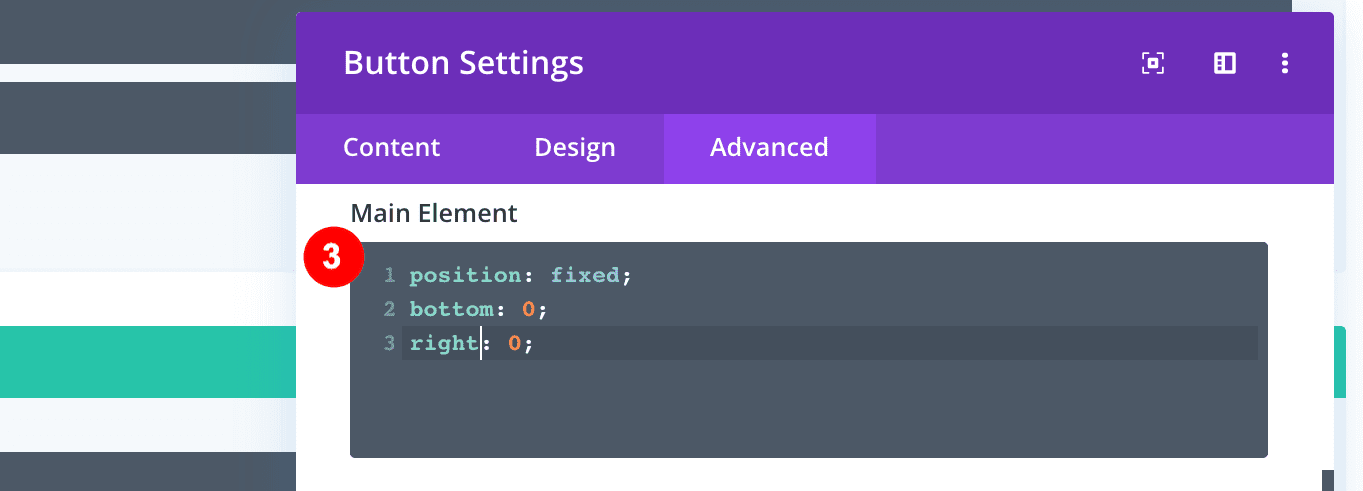

Finally, change the Custom CSS code in the Advanced tab:
- Change the code to:
position: fixed; bottom: 0; right: 0;
5. Change the Custom CSS to Achieve The Second StyleExample
In the first style example, the corners are stuck to the corners. In order to get the second style, you just have to adjust the CSS code to make the corner modules float inwards just a bit.
Simply Adjust the Custom CSS in The Advanced Tab of All Four Modules
position: fixed; top: 1vw; left: 1vw;
position: fixed; bottom: 2vw; left: 2vw;
position: fixed; top: 3vw; left: 2vw;
position: fixed; bottom: 2vw; right: 2vw;
This tutorial only skims the surface of what you can do with 4-corner fixed navigation using Divi. Ultimately, you can choose any module for each column, as long as you keep the Custom CSS we provided. We hope that this creative tutorial will inspire you to make your own 4-corner fixed navigation. If you have any questions or suggestions, make sure you leave a comment in the comment section below!
